Product details

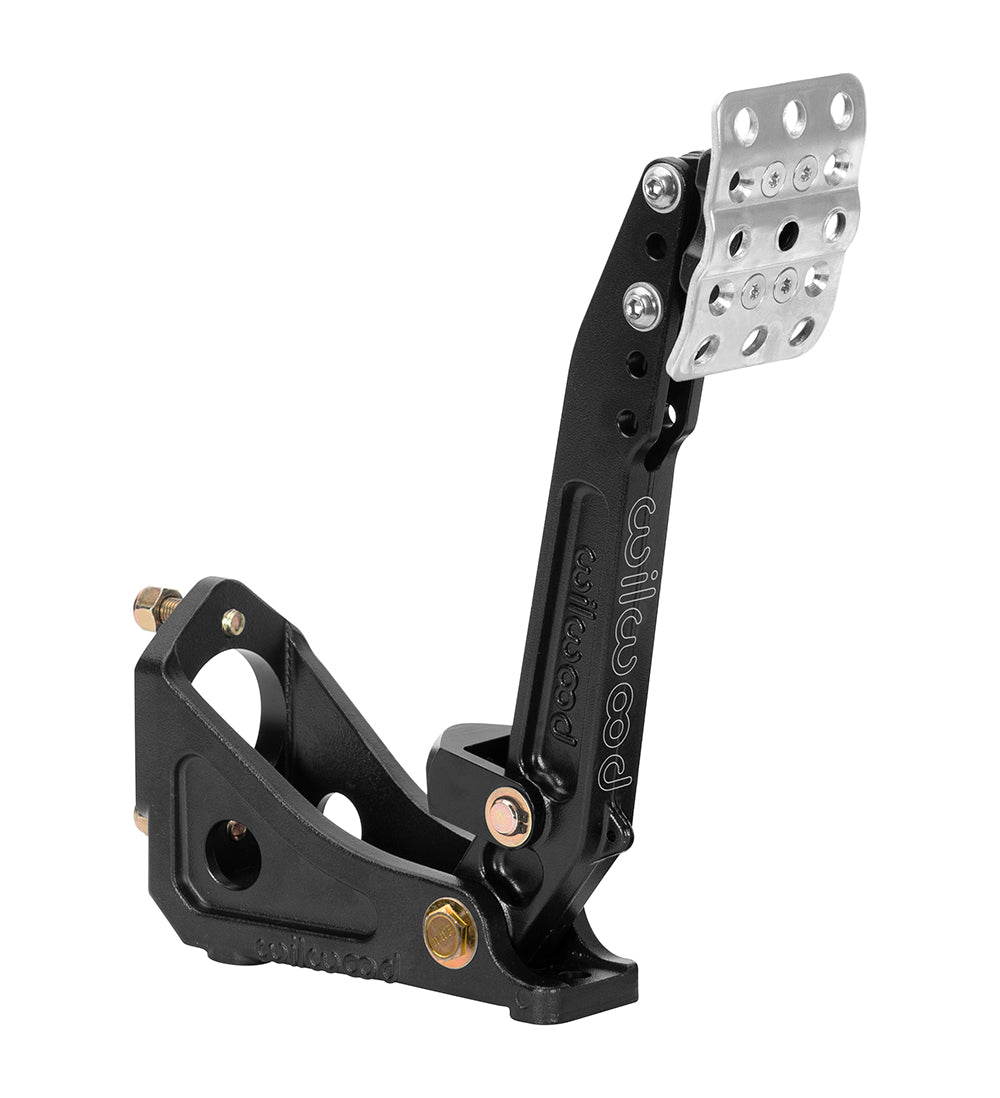

This Wilwood floor-mounted clutch pedal uses an adjustable head to change the operating ratio without a brake balance bar. A single master cylinder connects through a pin and clevis, and lateral pad adjustment helps place the foot contact point in the pedal box. For Wilwood Engineering's motorsport, street-performance, and specialized applications, component selection follows the requirements of the complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, where its business focuses on designing and manufacturing disc brake systems, calipers, rotors, master cylinders, valves, fittings, and lines.
Technical Details
- Manufacturer part number: 340-16378
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Forward
- Ratio settings: Three head positions spanning 5.25:1 to 6.00:1
- Master-cylinder provision: One; 2.25-inch vertical flange; sold separately
- Balance bar: Not fitted
- Weight: 2.410 lb
Wilwood technical instructions DS-1464 · Wilwood product specifications
Fitment & Compatibility
For a hydraulic clutch installation using one Wilwood 2.25-inch vertical-flange, single-outlet master cylinder, sold separately. Check bore, required release travel and floor clearance at the selected head position within the 5.25:1 to 6:1 range. Match the clutch application to DS-1464.
Confirm the installation with PMB Performance when the existing configuration is unclear. We have more than 20 years of experience supporting careful parts selection and fitment checks.
