Product details

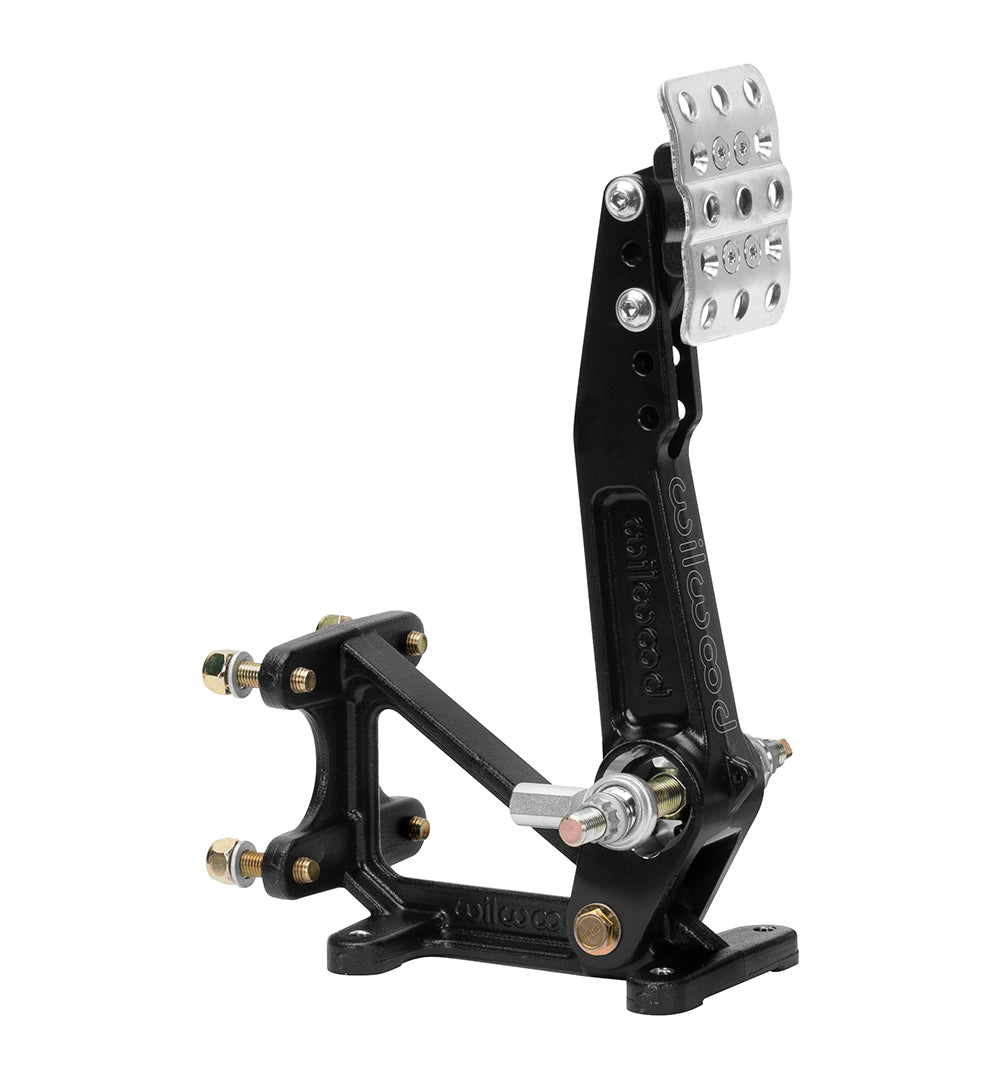

This Wilwood floor assembly combines an adjustable brake head with trunnion-supported Tru-Bar bias control. The head has three leverage positions from 5.25:1 to 6:1, while spherical rod-end attachments connect the bias bar to the two hydraulic pushrods. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California and designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings, and brake lines form part of its range for motorsport, street-performance, and specialized installations; suitability depends on the full brake-system arrangement.
Technical Details
- Manufacturer part number: 340-16377
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Forward
- Ratio choices: Three head positions spanning 5.25:1 to 6.00:1
- Bias control: Tru-Bar fixed trunnion with spherical rod ends
- Lateral pad travel: 1/2 in each direction
- Weight: 2.970 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1463 · Wilwood product specifications
Fitment & Compatibility
Two 2.25-inch vertical-flange, single-outlet brake masters are required and sold separately. Confirm floor mounting and reservoir access, then check pushrod articulation and cylinder travel at the selected ratio. Pedal-pad position can be shifted laterally by 1/2 inch each way.
