Product details

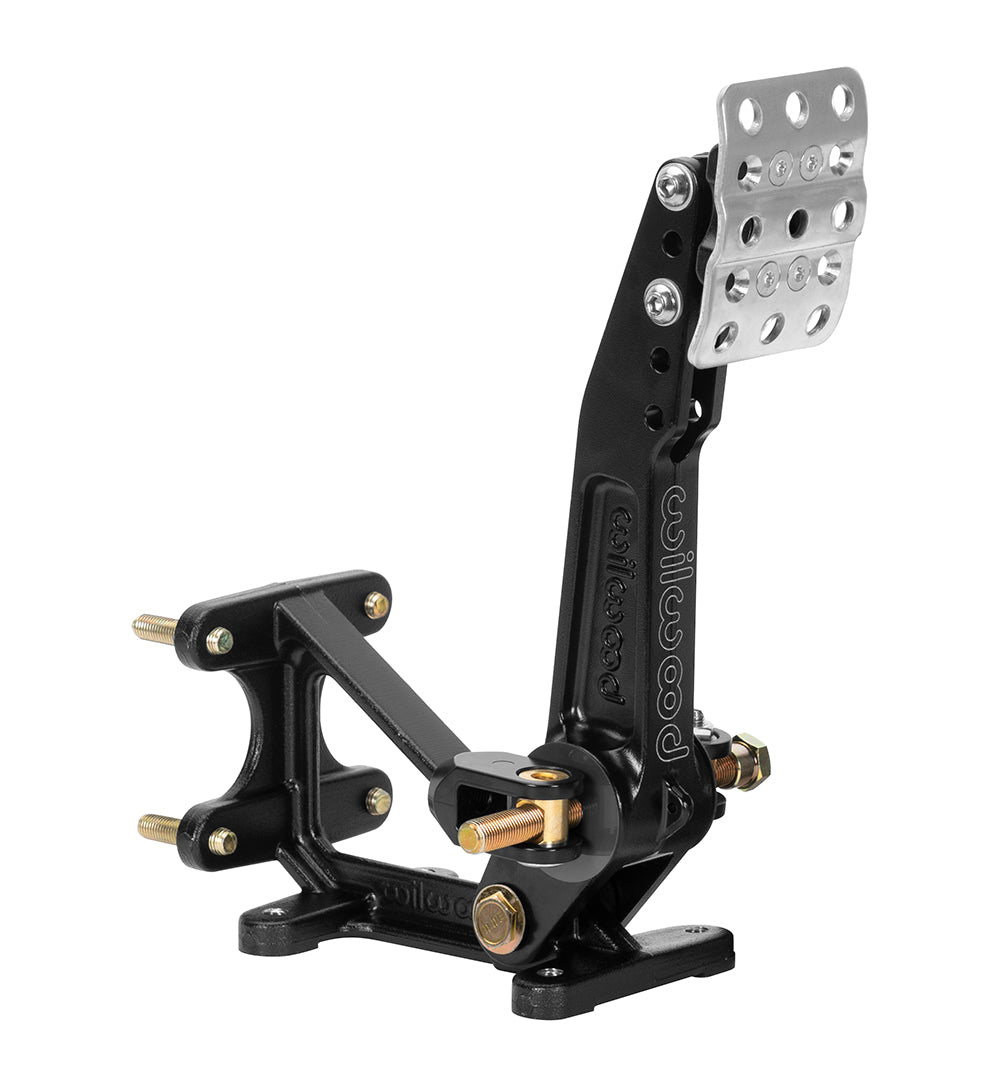

The adjustable head on this Wilwood floor brake pedal offers three mechanical ratios spanning 5.25:1 to 6:1. Its conventional detent balance bar provides a separate adjustment for the load divided between two brake master cylinders. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977. Its range covers brake calipers, rotors, master cylinders, valves, fittings, and lines, which are selected according to the needs of the complete system.
Technical Details
- Manufacturer part number: 340-16376
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Forward
- Ratio positions: Three head positions spanning 5.25:1 to 6.00:1
- Foot-pad adjustment: 1/2 in left or right
- Balance bar: Standard detent type
- Weight: 3.020 lb
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-1451 · Wilwood product specifications
Fitment & Compatibility
Use two compatible single-outlet masters with 2.25-inch vertical flanges, selected separately. Check floor reinforcement and full cylinder stroke at each proposed head position. The foot pad also moves 1/2 inch laterally in either direction for clearance.
