Wilwood 2-Inch Offset Clutch Pedal Retrofit, 5.50–6.25:1 Forward Mount

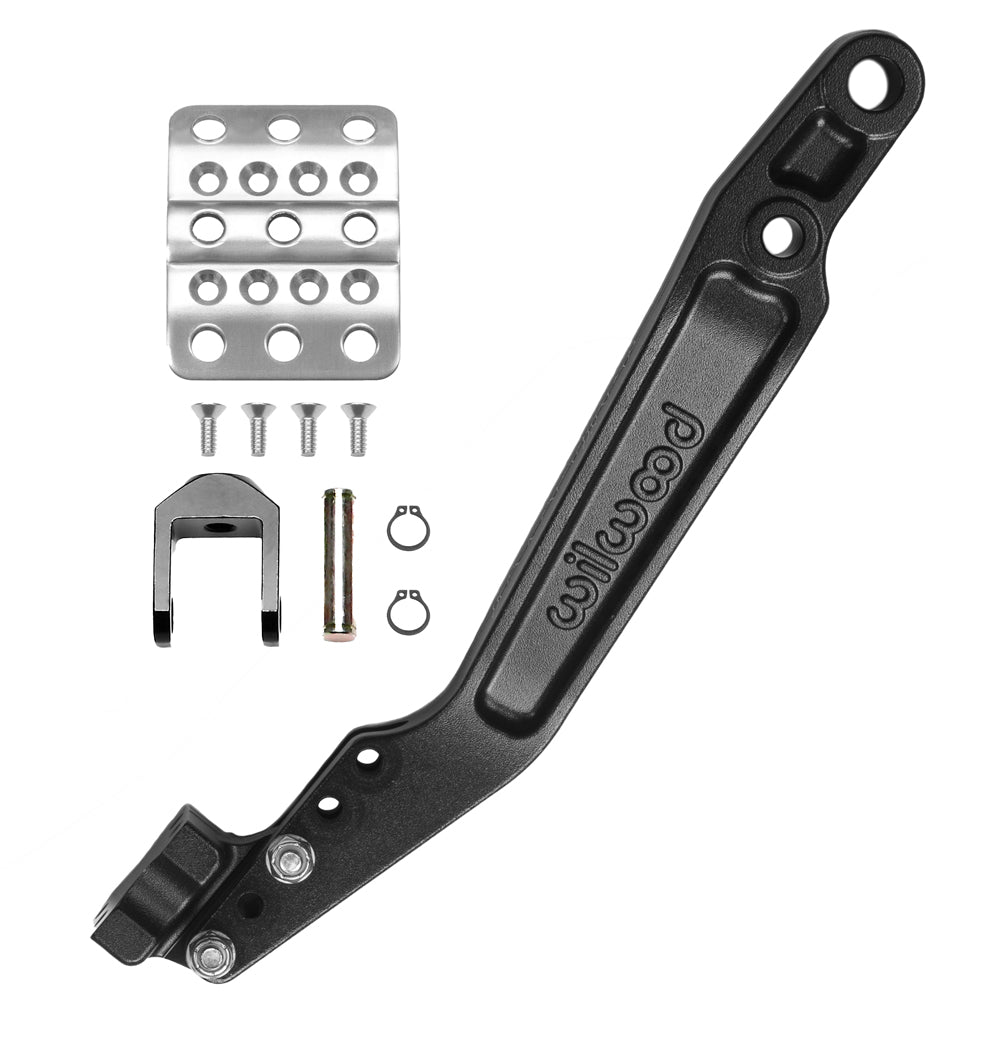

This Wilwood forward-mount clutch conversion adds a 2-inch offset arm and a vertically adjustable pedal head. The included clevis hardware adapts specified earlier assemblies, giving the installer three leverage settings across a 5.50:1 to 6.25:1 range. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 340-16352
• Material: Aluminum
• Finish: Black E-coat
• Mount Type: Swing; Forward
• Offset: 2.00 in
• Ratio positions: Three head positions spanning 5.50:1 to 6.25:1
• Compatible assemblies: 340-11295 and 340-3950
• Weight: 1.860 lb

Wilwood technical instructions DS-252 · Wilwood product specifications

Fitment & Compatibility

Wilwood lists assemblies 340-11295 and 340-3950 for this retrofit. Confirm the original forward-facing mounting base and allow clearance for the offset clutch pedal. Check master-cylinder stroke again after selecting the head position.

For a modified installation, the actual hardware matters as much as the vehicle identity. PMB Performance has over 20 years of experience helping customers work through those fitment details.
