Product details

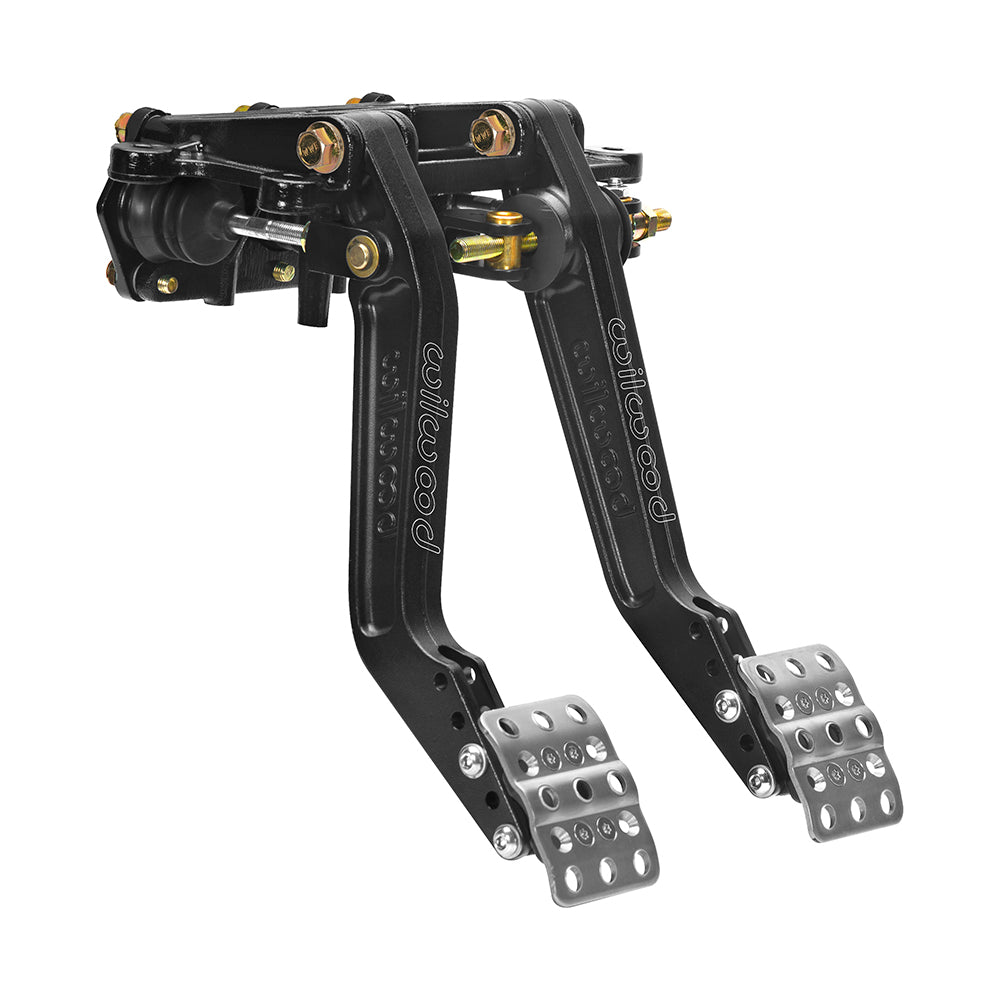

An offset clutch arm opens the foot-pad spacing to 5–7 inches on this Wilwood forward-swing brake and clutch assembly. Each adjustable head has three positions spanning 5.50:1 to 6.25:1, while a conventional balance bar adjusts the force split between two brake cylinders. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems, from calipers and brake rotors to master cylinders, valves, fittings, and brake lines. Its motorsport, street-performance, and specialized components are chosen to suit the complete braking installation.
Technical Details
- Manufacturer part number: 340-16350
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Ratio settings: Three head positions spanning 5.50:1 to 6.25:1
- Foot-pad spacing: 5-7 in on center; offset clutch
- Bias system: Standard detent balance bar
- Weight: Three head positions spanning 5.25:1 to 6.00:1
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-1408 · Wilwood product specifications
Fitment & Compatibility

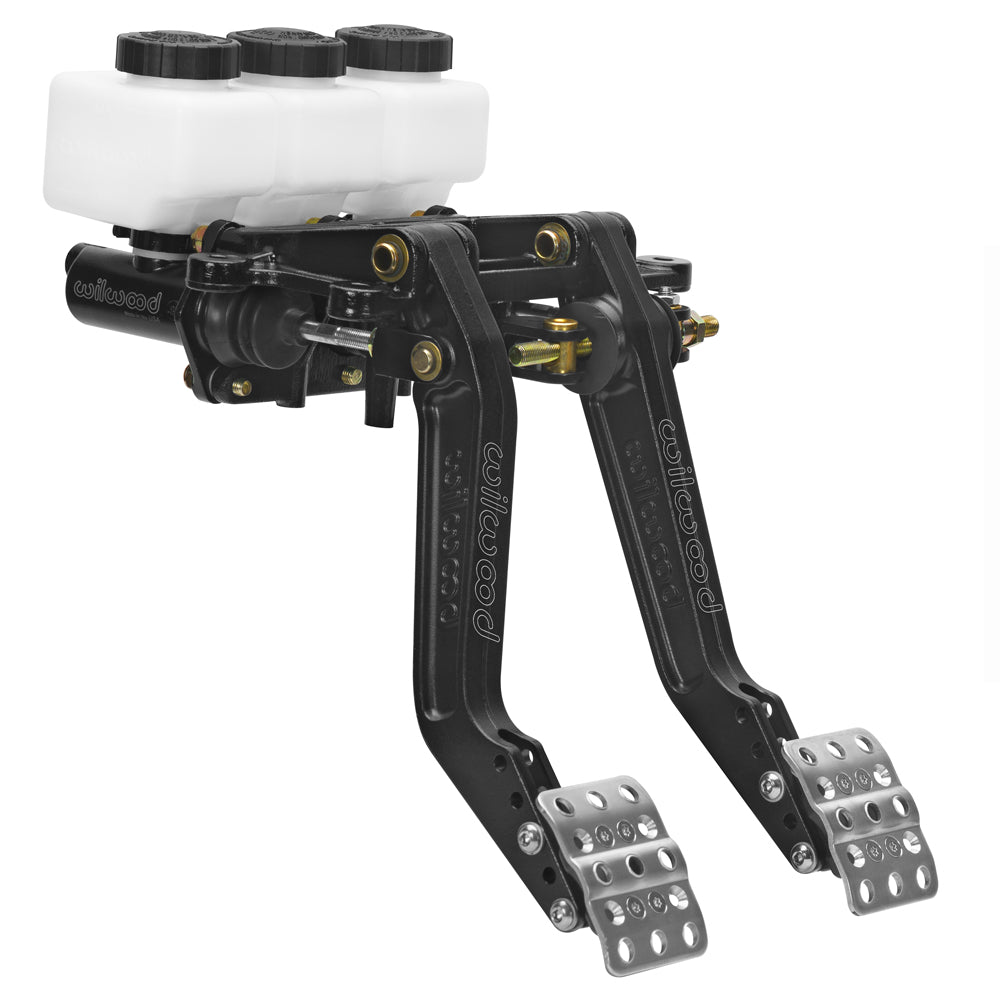

The assembly accepts three Wilwood single-outlet masters with 2.25-inch vertical flanges: two for braking and one for the clutch. Cylinders are separate. Verify the wider pedal spacing, firewall mounts and cylinder stroke at the chosen ratio.
PMB Performance brings over 20 years of parts and fitment experience. Contact us with the required pedal spacing and three master-cylinder specifications for help checking this selection.
