Product details

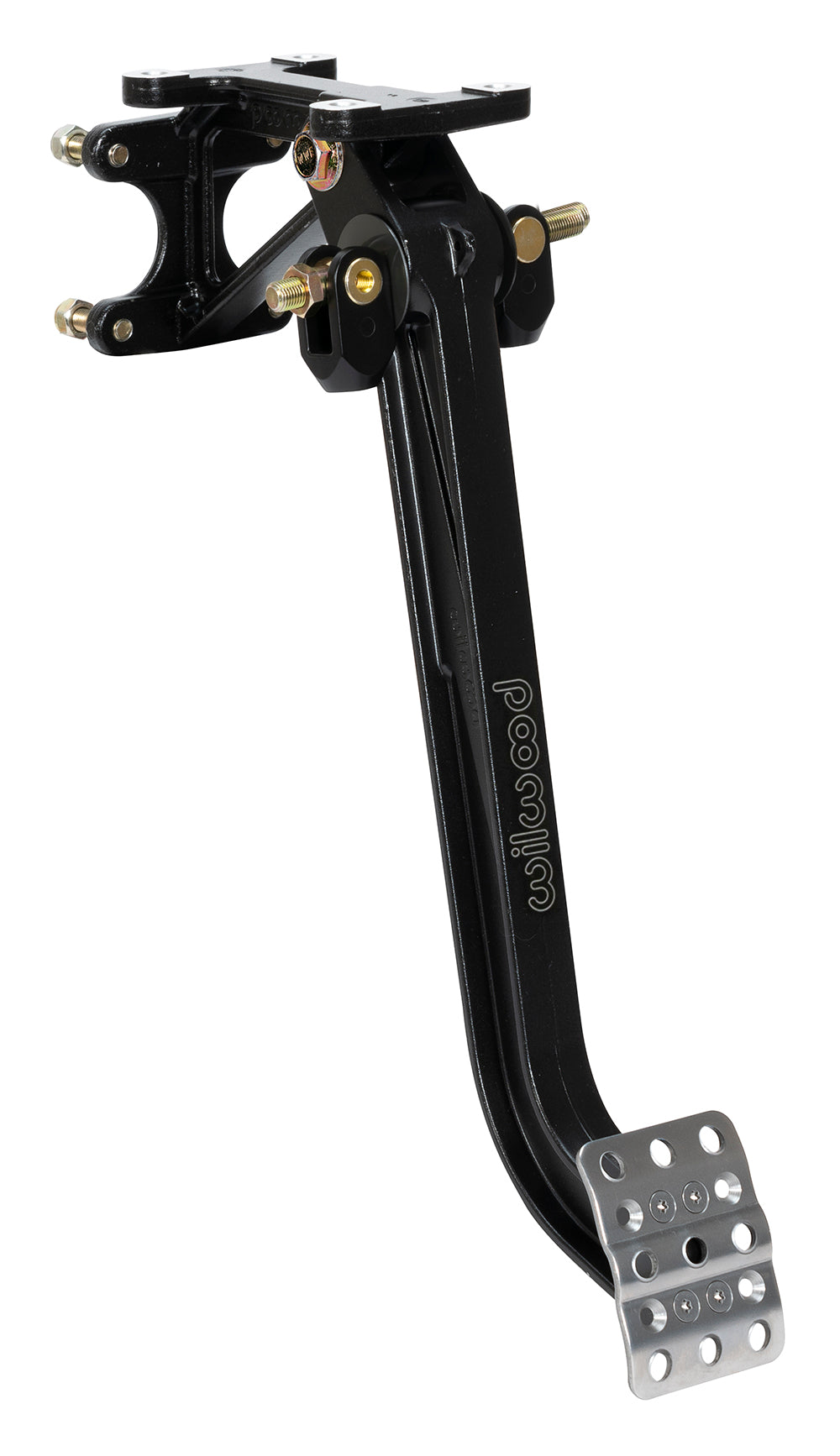

A 15.32-inch forged arm gives this Wilwood forward-swing brake pedal a 10:1 ratio. The included detent balance bar works with two separate master cylinders, and the foot pad can be moved laterally to clear nearby controls. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 340-15677
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Ratio: 10.0 to 1
- Pedal Length: 15.32 in
- Mount length: 16.06 in
- Brake bias: Standard detent balance bar with jam nut
- Weight: 3.310 lb
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Check the full 16.06-inch mount length and firewall structure before selecting this long-arm assembly. Use compatible vertical-flange single-outlet master cylinders, ordered separately. Confirm bore sizing and available cylinder stroke for the increased mechanical leverage.
