Product details

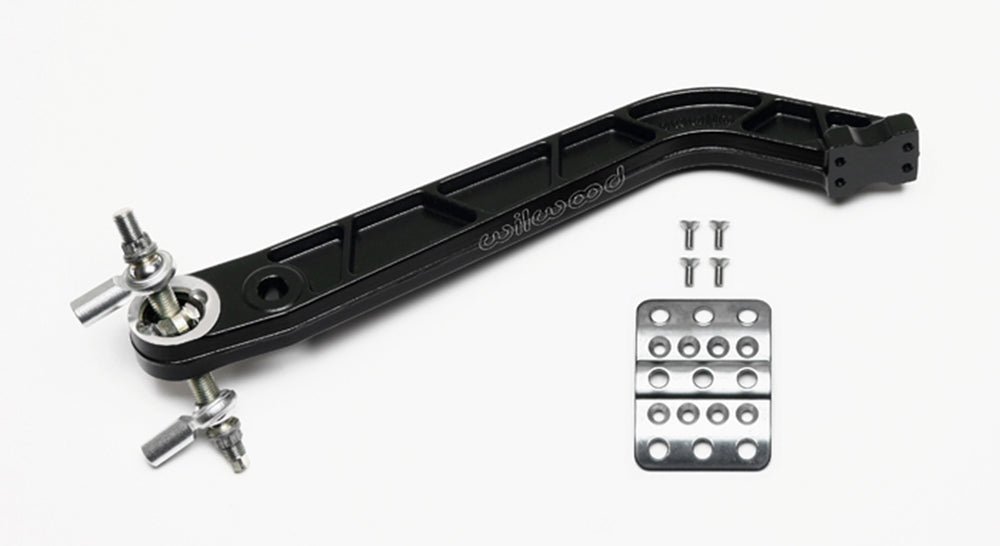

Wilwood's 6.25:1 reverse conversion supplies an 11.88-inch brake arm and the Tru-Bar trunnion hardware for an existing compatible assembly. It changes the brake force linkage without supplying a complete new pedal mounting base. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.
Technical Details
- Manufacturer part number: 340-15152
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Ratio: 6.25 to 1
- Pedal Length: 11.88 in
- Compatible assemblies: 340-3342, 340-5181, 340-6451, 340-11299 and 340-13836
- Included: Brake arm, Tru-Bar trunnion and clevis conversion hardware
- Weight: 1.800 lb
Wilwood technical instructions DS-1102 · Wilwood product specifications
Fitment & Compatibility
This kit converts assemblies 340-3342, 340-5181, 340-6451, 340-11299 and 340-13836. Check the assembly identification and master-cylinder connections, then verify arm clearance through its full arc. Do not select this longer-arm conversion for a short 5:1 pedal solely by appearance.
