Product details

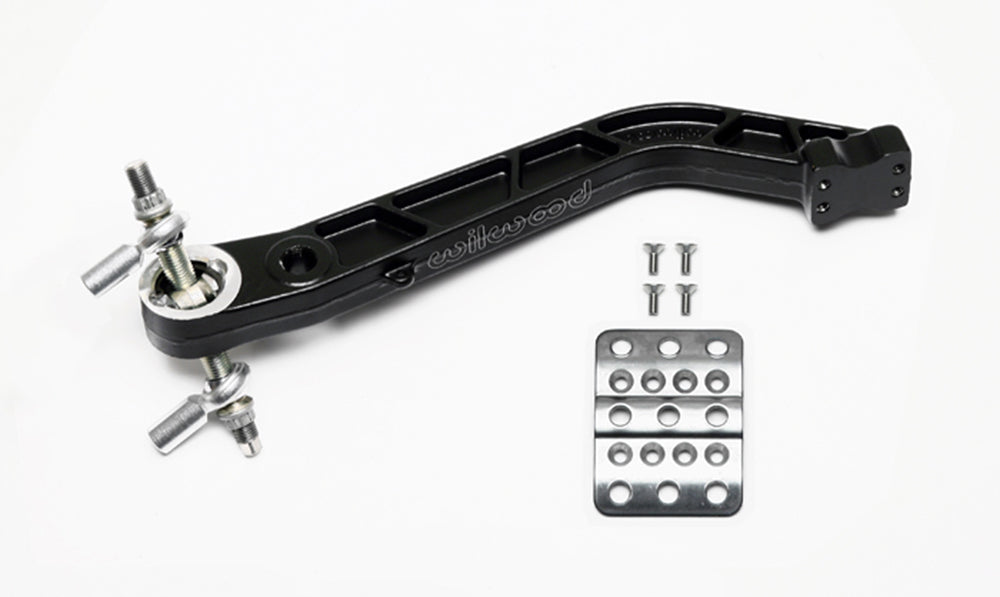

This Wilwood Tru-Bar replacement kit converts specified short-arm reverse brake assemblies from their earlier balance-bar arrangement. The kit includes the brake pedal, trunnion and clevis hardware; Wilwood identifies it as the nominal 5:1 reverse-mount conversion. The complete brake installation determines which Wilwood component is appropriate. Wilwood Engineering designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977, and it is based in Camarillo, California.
Technical Details
- Manufacturer part number: 340-15151
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Nominal conversion ratio: 5:1
- Compatible assemblies: 340-4828, 340-5180, 340-13835 and 340-13837
- Weight: 1.700 lb
Wilwood technical instructions DS-1102 · Wilwood product specifications
Fitment & Compatibility
Approved earlier assemblies are 340-4828, 340-5180, 340-13835 and 340-13837. Identify the installed pedal by assembly number rather than relying on a rounded ratio alone. The existing compatible base and master cylinders are retained.
PMB Performance offers fitment support backed by more than 20 years of experience. Share the specifications of the matching assembly so the component can be checked in context.
