Product details

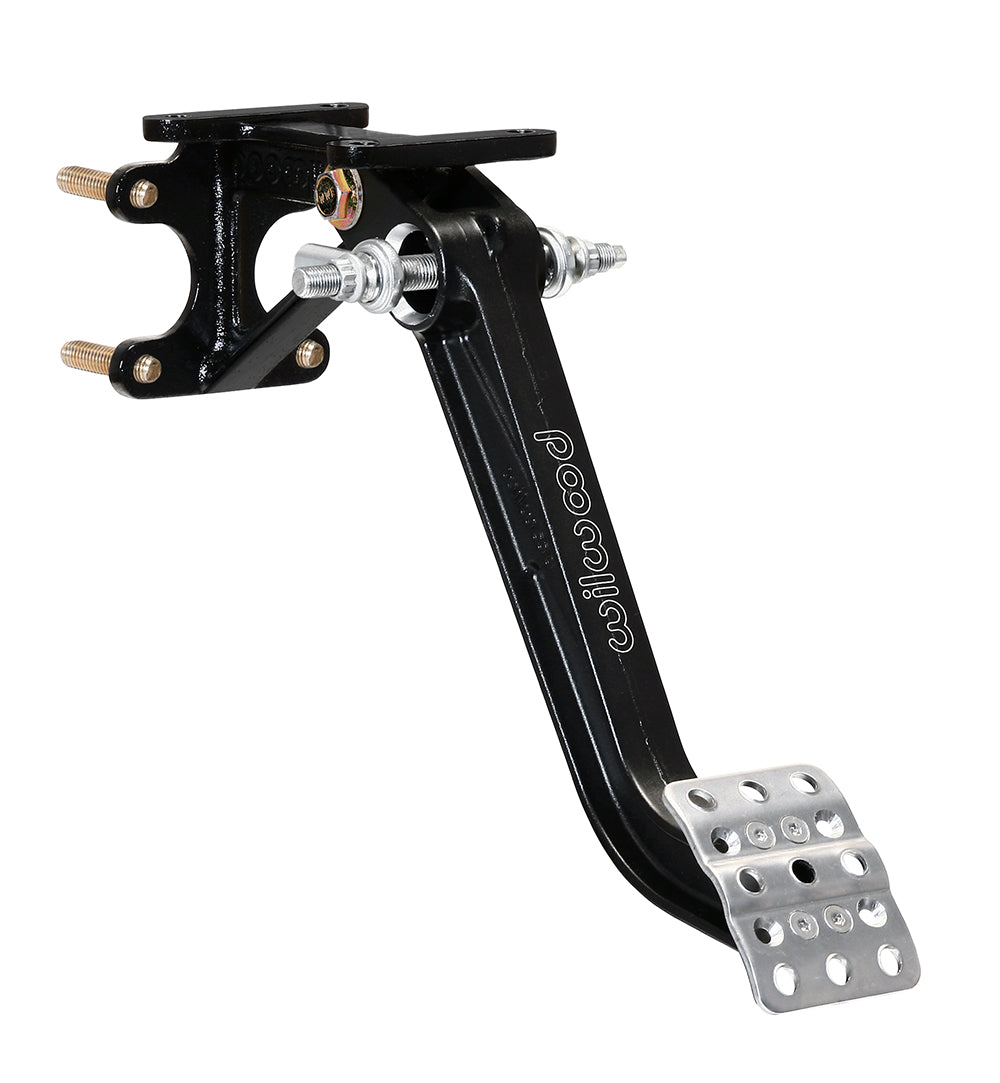

An overhead forward-swing installation and fixed 7:1 leverage define this Wilwood Tru-Bar brake pedal. The 12.12-inch arm transfers force through a trunnion-supported bar and spherical rod ends to two separately chosen master cylinders. Established in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake design and manufacturing work covers calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Across motorsport, street-performance, and specialized applications, those components are specified as parts of a complete braking system rather than chosen in isolation.
Technical Details
- Manufacturer part number: 340-15079
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Ratio: 7.0 to 1
- Pedal Length: 12.12 in
- Mount length: 12.88 in
- Bias system: Tru-Bar; two separate brake master cylinders
- Weight: 3.040 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1138 · Wilwood product specifications
Fitment & Compatibility
The mounting length is 12.88 inches. Compare firewall access and pushrod alignment with the existing installation, particularly when replacing 340-1287 or 340-13832. Select master-cylinder bores and any remote bias adjuster to match the brake system.
With over 20 years of experience, PMB Performance can help check the details that matter before you order. Have the installed assembly and component specifications available.
