Product details

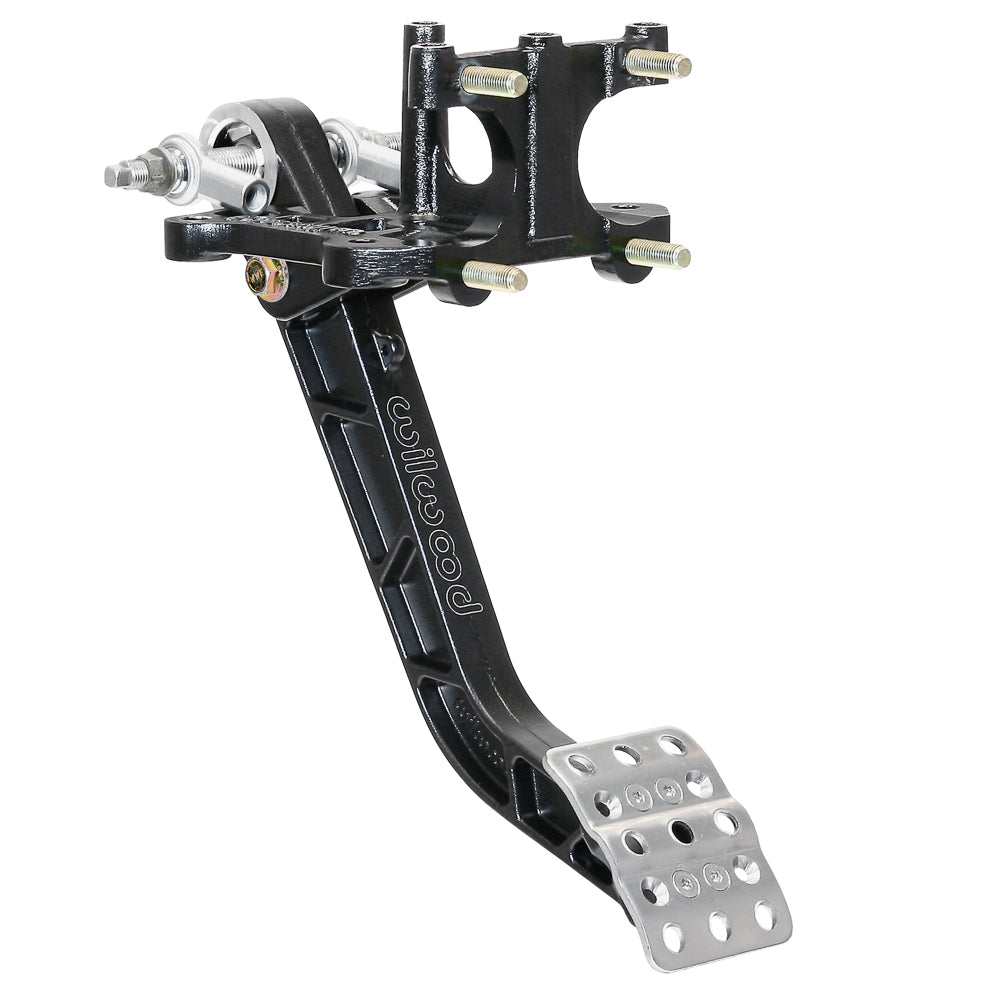

The short 10.14-inch arm on this Wilwood reverse-swing brake pedal provides a 5.1:1 ratio for a twin-master-cylinder installation. A fixed trunnion supports the Tru-Bar balance mechanism, and spherical connections link the bar to the two cylinder pushrods. For Wilwood Engineering's motorsport, street-performance, and specialized applications, component selection follows the requirements of the complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, where its business focuses on designing and manufacturing disc brake systems, calipers, rotors, master cylinders, valves, fittings, and lines.
Technical Details
- Manufacturer part number: 340-15076
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Ratio: 5.1 to 1
- Pedal Length: 10.14 in
- Mount length: 11.02 in
- Balance mechanism: Tru-Bar; two brake master cylinders, sold separately
- Weight: 5.200 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1137 · Wilwood product specifications
Fitment & Compatibility
Allow for the 11.02-inch mounting length and access to the reverse-facing master cylinders. It supersedes brake assemblies 340-5180 and 340-13837. Cylinder bores, reservoirs and any remote bias cable must be specified separately.
Confirm the installation with PMB Performance when the existing configuration is unclear. We have more than 20 years of experience supporting careful parts selection and fitment checks.
