Product details

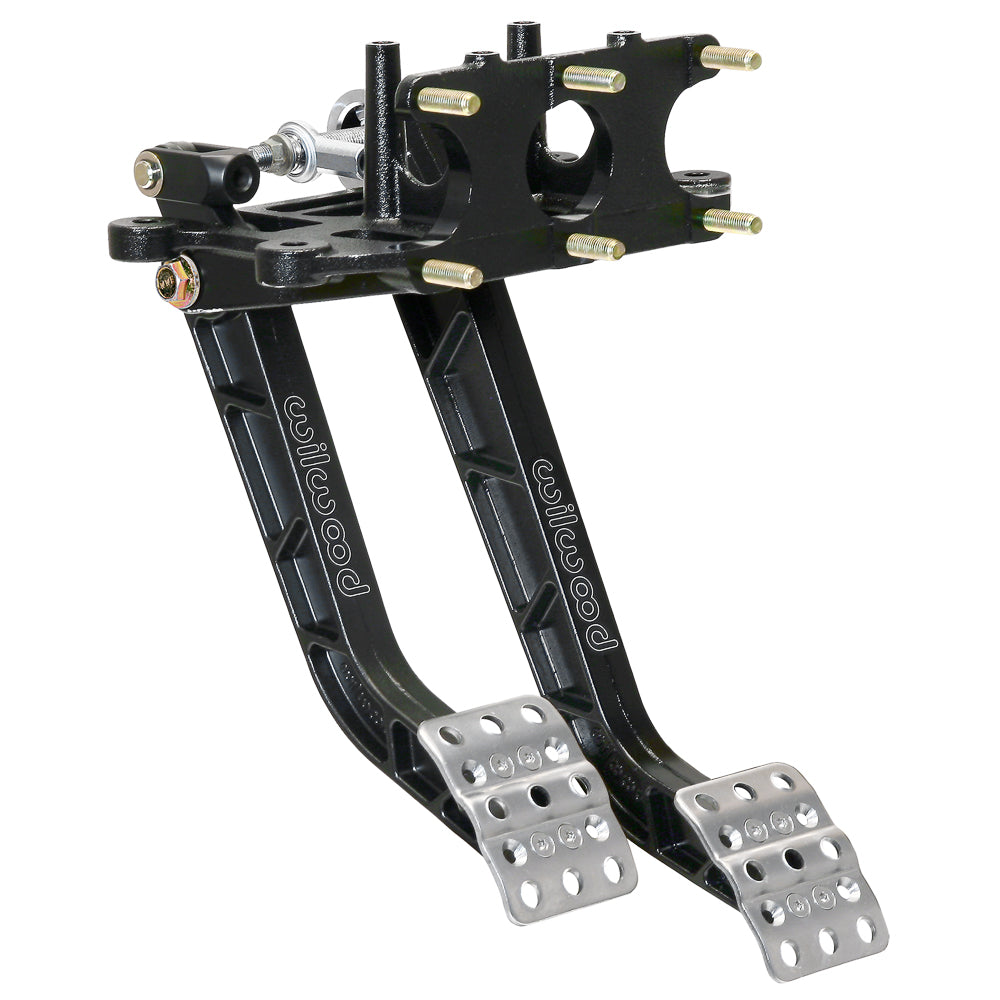

This Wilwood reverse-swing assembly pairs a 6.25:1 brake pedal with a shorter 5.1:1 clutch pedal. Tru-Bar linkage divides brake-pedal force between two separate master cylinders, while the clutch pedal operates its own cylinder. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California and designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings, and brake lines form part of its range for motorsport, street-performance, and specialized installations; suitability depends on the full brake-system arrangement.
Technical Details
- Manufacturer part number: 340-15075
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Brake geometry: 6.25:1 ratio; 11.88-inch pedal radius shown in DS-1104
- Clutch geometry: 5.1:1 ratio; 10.14-inch pedal radius shown in DS-1104
- Bias mechanism: Tru-Bar with fixed trunnion and spherical rod ends
- Weight: 5.190 lb
- Mount length: 12.22 in
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1104 · Wilwood product specifications
Fitment & Compatibility
Confirm that the shorter clutch pedal reaches the required master-cylinder stroke without overtravel. This assembly replaces 340-6451 and 340-13836. Verify reverse-mount packaging and select compatible brake and clutch cylinders separately.
Discuss the existing setup with PMB Performance before ordering when the application is uncertain. We bring over 20 years of experience to parts selection and fitment support.
