Product details

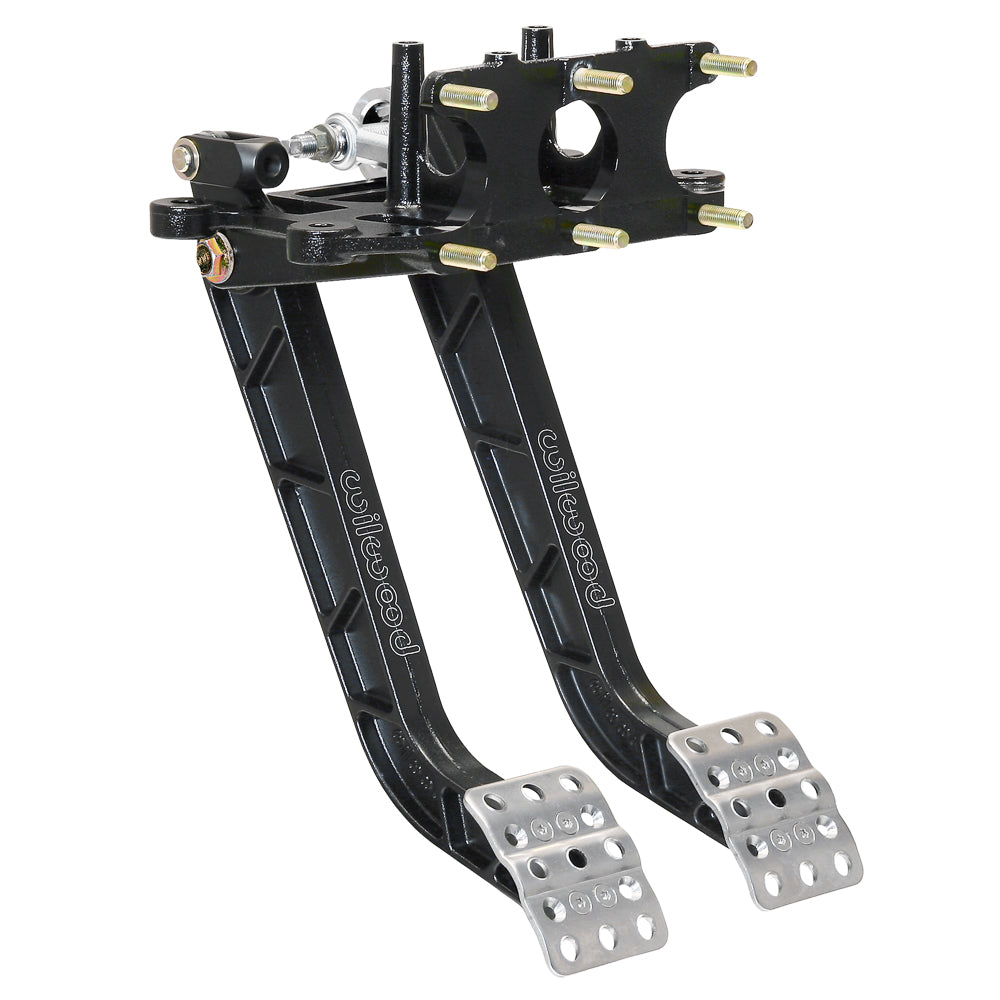

Equal-length 11.88-inch arms give this Wilwood reverse-mount brake and clutch assembly a 6.25:1 ratio on both pedals. The included Tru-Bar brake linkage adjusts the load split between separate front and rear brake master cylinders without changing the clutch actuation. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977. Its range covers brake calipers, rotors, master cylinders, valves, fittings, and lines, which are selected according to the needs of the complete system.
Technical Details
- Manufacturer part number: 340-15074
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Ratios: 6.25:1 brake and clutch
- Arm lengths: 11.88 in each
- Mount length: 12.22 in
- Brake bias linkage: Tru-Bar fixed trunnion and spherical rod ends
- Weight: 5.400 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1104 · Wilwood product specifications
Fitment & Compatibility
Check the 12.22-inch mounting length and reverse-facing cylinder layout against the chassis. The assembly supersedes 340-3342 and 340-11299. Master cylinders must be selected separately, and the optional remote adjuster connects to the bar's 3/8-inch end.
