Product details

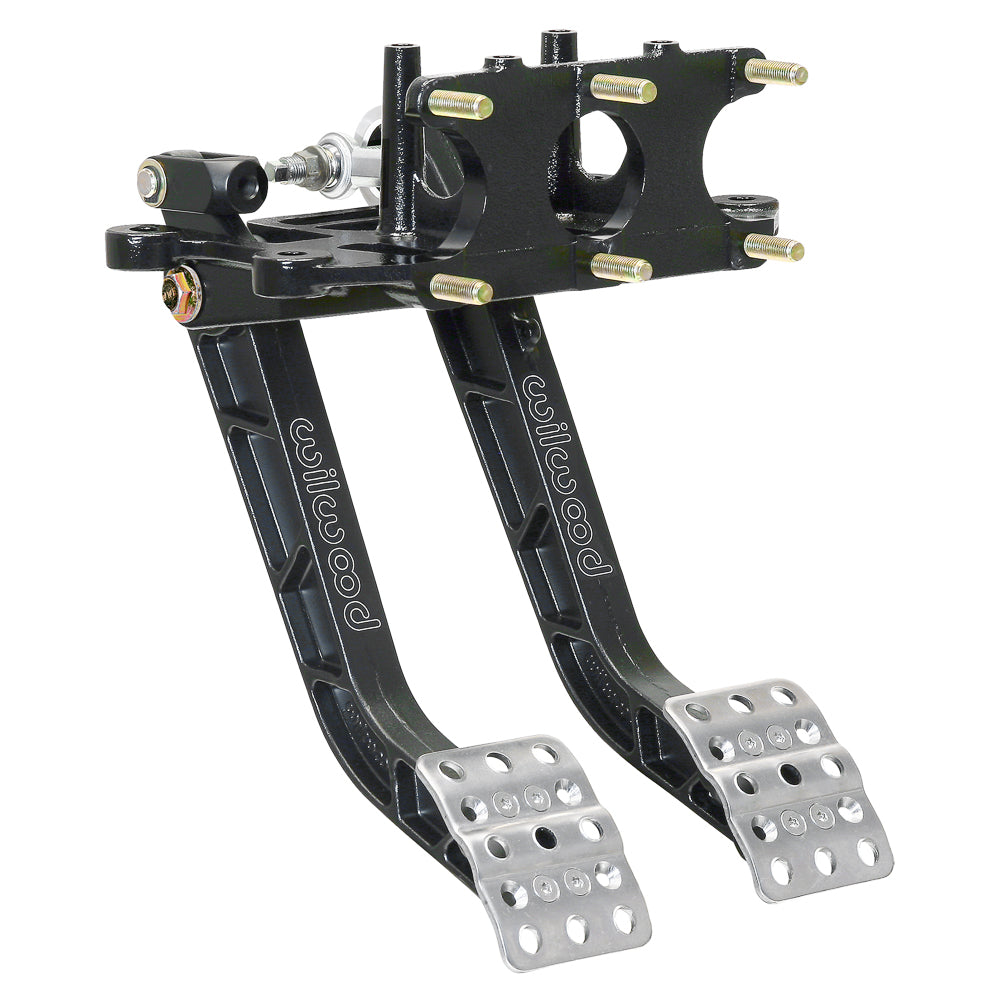

Both arms in this Wilwood reverse-swing pedal set measure 10.14 inches and use the 5.1:1 ratio specified for this assembly. Tru-Bar brake bias is adjusted through a fixed trunnion and spherical rod ends, while the second pedal operates a separate clutch master cylinder. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 340-15073
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Pedal ratios: Brake 5.1:1; clutch 5.1:1
- Pedal lengths: 10.14 in each
- Bias mechanism: Tru-Bar; 7/16-20 adjustment bar
- Weight: 5.140 lb
- Mount length: 11.02 in
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1104 · Wilwood product specifications
Fitment & Compatibility
Compare the short-arm geometry with the available footwell and master-cylinder space. Wilwood identifies this assembly as the replacement for 340-4828 and 340-13835. Select two brake cylinders and one clutch cylinder to suit the system; these are not included.
For a modified installation, the actual hardware matters as much as the vehicle identity. PMB Performance has over 20 years of experience helping customers work through those fitment details.
