Product details

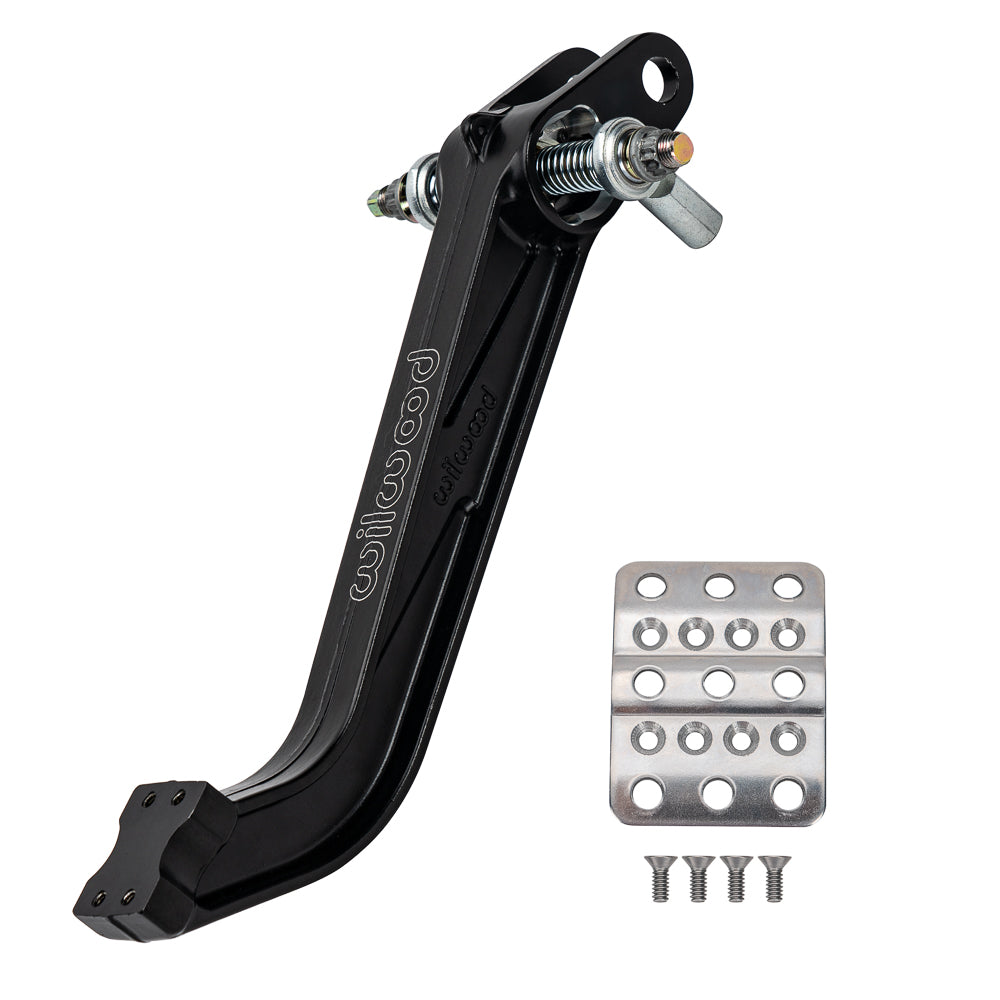

The Wilwood 7:1 forward-mount Tru-Bar retrofit replaces the brake arm and bias linkage in specified earlier pedal assemblies. It supplies the trunnion and clevis hardware needed for the conversion, while retaining the compatible pedal mounting structure. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 340-14922
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Ratio: 7.0 to 1
- Compatible assemblies: 340-1287 and 340-13832
- Included conversion parts: Brake pedal, Tru-Bar trunnion assembly and clevis hardware
- Weight: 1.850 lb
Wilwood technical instructions DS-1102 · Wilwood product specifications
Fitment & Compatibility
Wilwood lists forward-mount assemblies 340-1287 and 340-13832 for this conversion. Check the existing assembly number, master-cylinder alignment and pedal clearance. This is a retrofit kit, not a complete mounted pedal box or master-cylinder package.
