Product details

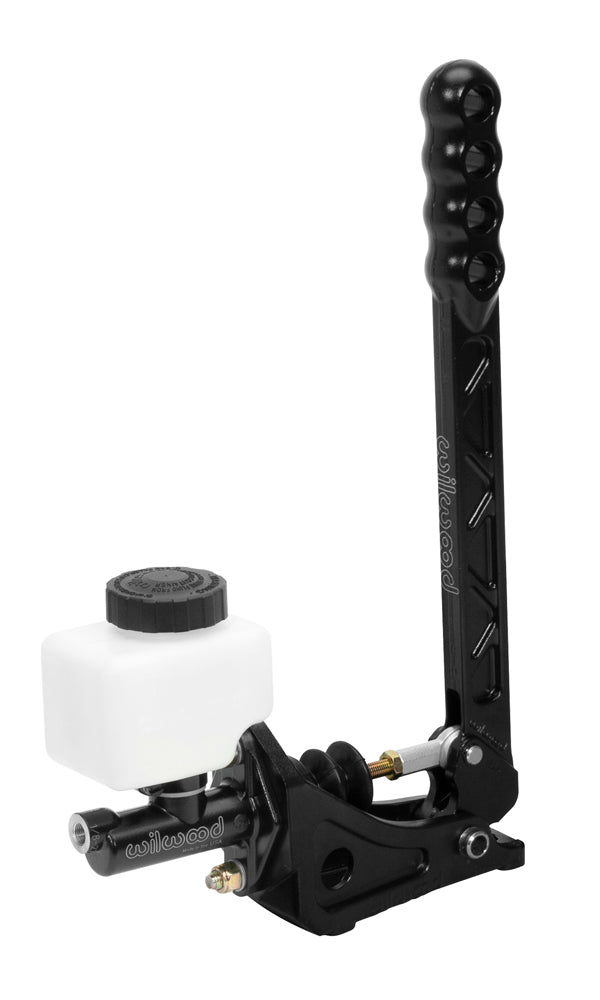

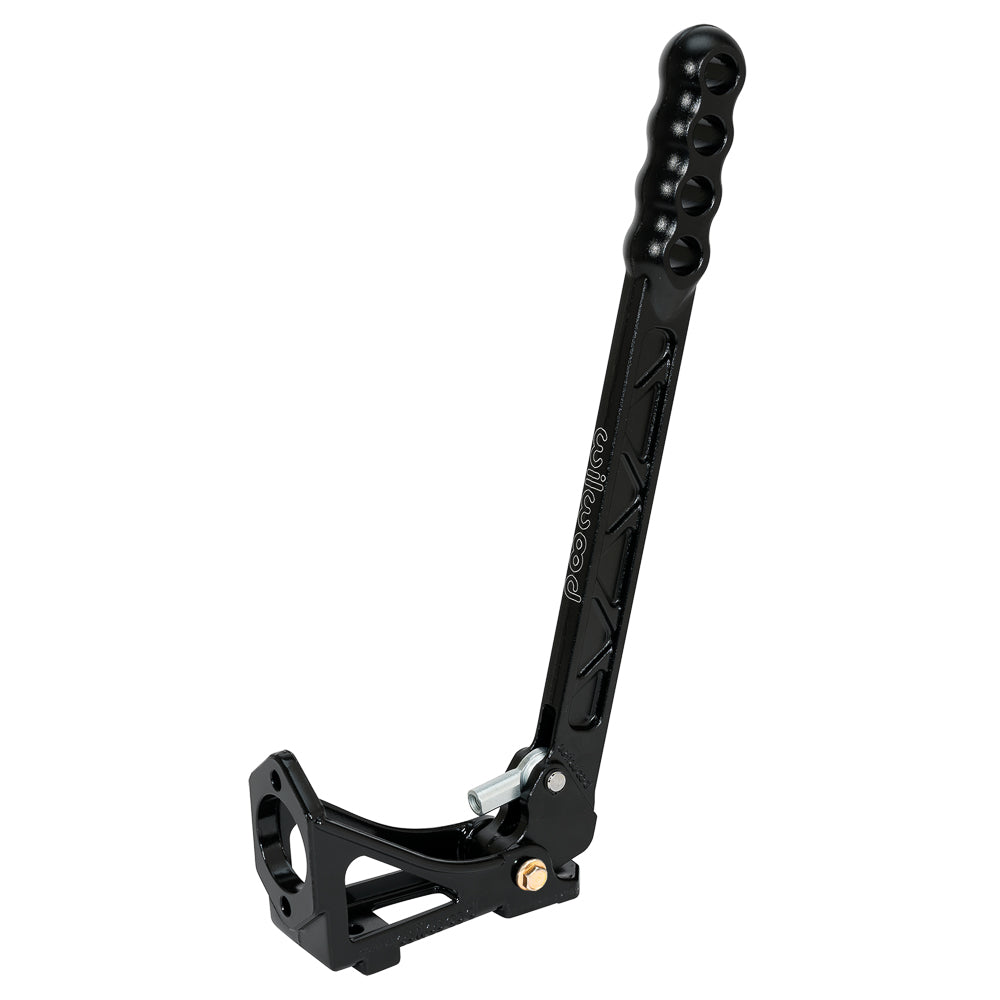

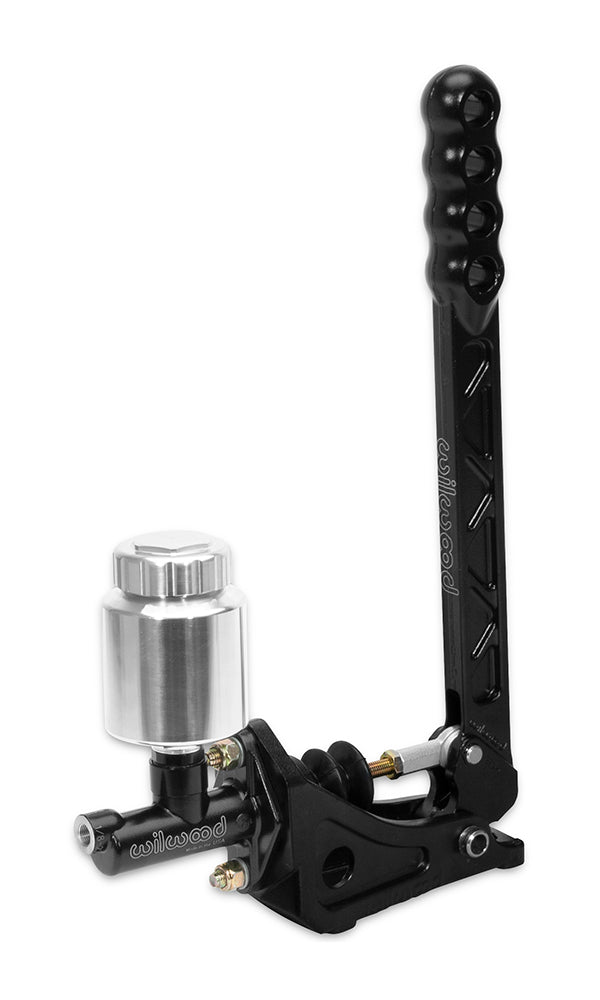

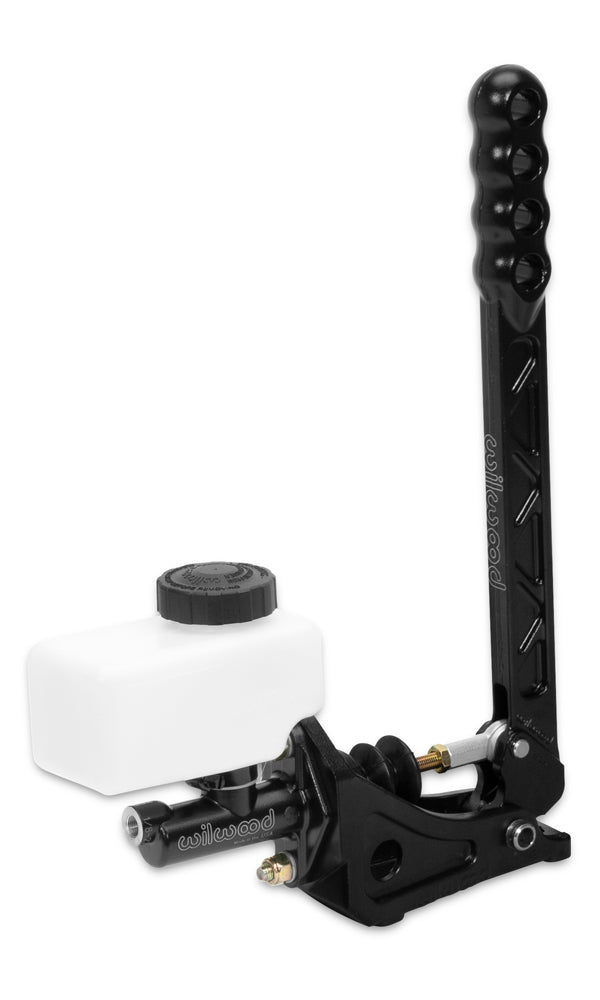

This Wilwood upright hydraulic handbrake places a 14.51-inch lever vertically beside the driver. Its 11:1 leverage acts on a separate master cylinder, making cylinder bore and travel part of the brake-system specification rather than a fixed feature of this lever assembly. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings, and brake lines serve motorsport, street-performance, and specialized applications, with each component selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-14769
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Vertical
- Master-cylinder mounting: 2.25-inch vertical flange; cylinder not included
- Lever ratio: 11:1
- Lever length: 14.51 in
- Mount length: 15.30 in
- Weight: 2.350 lb
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
The assembly accepts a 2.25-inch vertical-flange master cylinder. Allow space for the full upright lever arc and the hydraulic connections before fixing its base to the chassis. Do not substitute it for a required mechanical parking brake.
Need assistance identifying the correct configuration? PMB Performance draws on more than 20 years of experience; contact us with your system details and measurements.
