Product details

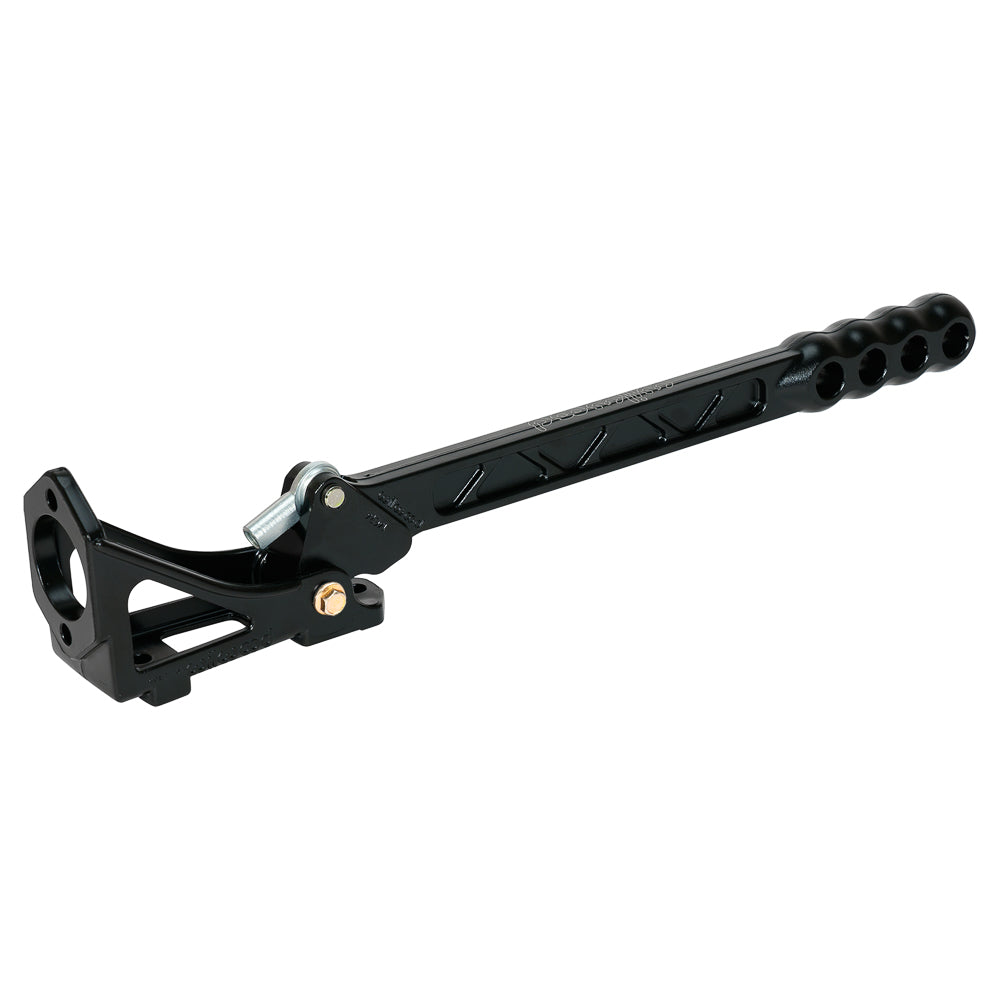

A horizontal lever distinguishes this Wilwood hydraulic handbrake assembly for a custom competition cockpit. The forged lever provides an 11:1 ratio and operates a separately selected master cylinder rather than including a hydraulic cylinder in the assembly. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.
Technical Details
- Manufacturer part number: 340-14768
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Horizontal
- Master cylinder: Separate; 2.25-inch vertical mounting flange
- Lever: Horizontal; 14.51 in; 11:1 ratio
- Weight: 2.400 lb
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Use a compatible master cylinder with a 2.25-inch vertical mounting flange. Check the lever sweep, master-cylinder stroke and brake circuit layout for the intended drift, rally or drag application. Hydraulic operation does not provide a mechanical parking-brake lock.
Over 20 years of parts experience stands behind PMB Performance's fitment assistance. Contact us with the component measurements and assembly information needed to check your application.
