Product details

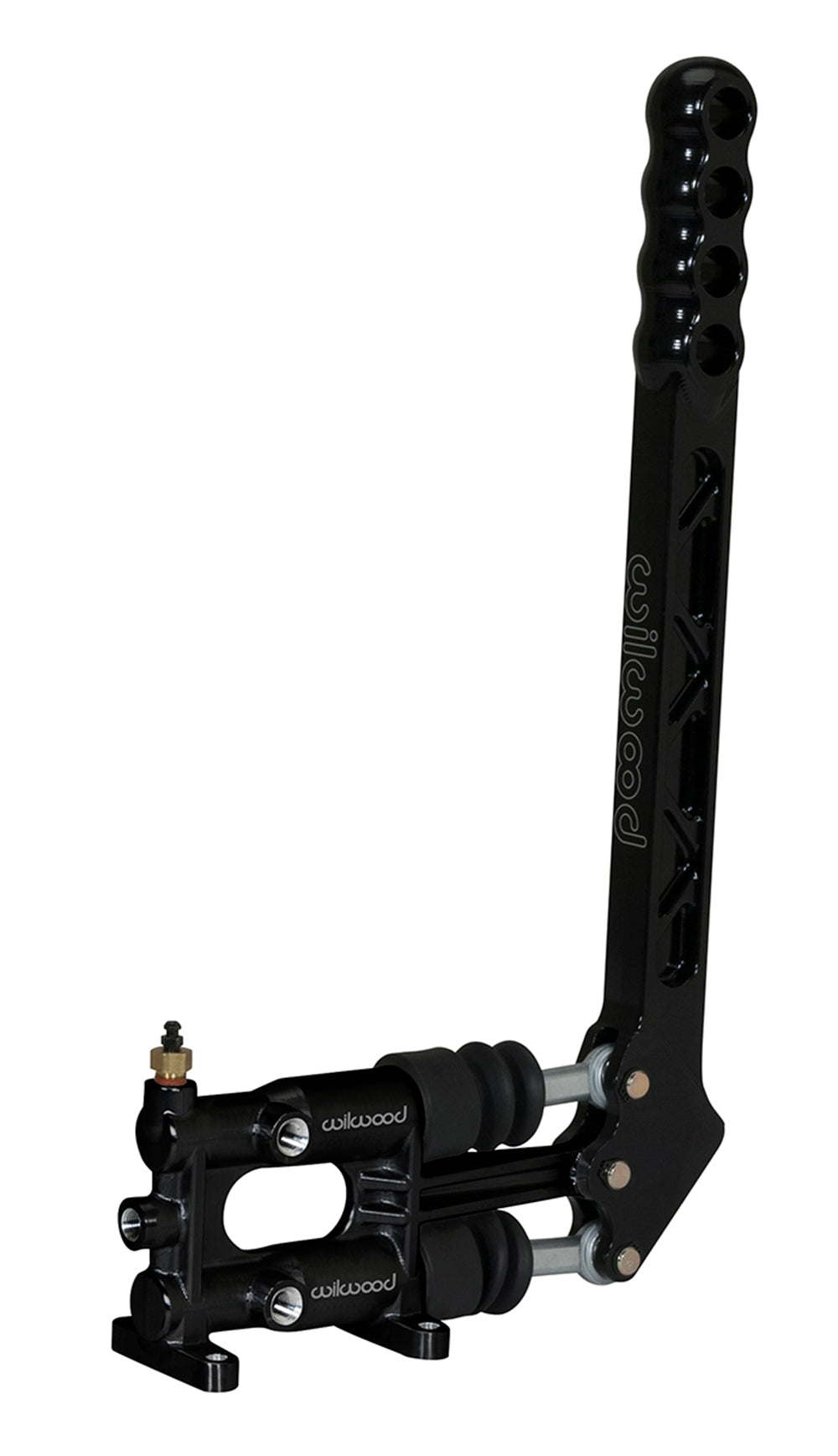

This Wilwood cutting brake combines an 11:1 vertical hand lever with two 3/4-inch hydraulic cylinders for competition off-road steering control. Its flow-through arrangement uses one inlet and two outlets, allowing the driver to apply braking to either side through the hand control. The complete brake installation determines which Wilwood component is appropriate. Wilwood Engineering designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977, and it is based in Camarillo, California.
Technical Details
- Manufacturer part number: 340-14744
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Vertical
- Cylinder bores: Two, 3/4 inch each
- Hydraulic layout: Single inlet; twin outlets; flow-through
- Lever ratio: 11:1
- Lever length: 14.51 in
- Weight: 3.300 lb
- Mount length: 16.48 in
Wilwood technical instructions DS-1253 · Wilwood product specifications
Fitment & Compatibility
Plan the two outlet circuits, mounting support and lever travel around the off-road brake system. This is a hydraulic cutting brake, not a cable-operated parking brake or a direct-fit replacement for a factory handbrake. Follow the cylinder plumbing requirements before installation.
PMB Performance offers fitment support backed by more than 20 years of experience. Share the specifications of the matching assembly so the component can be checked in context.
