Product details

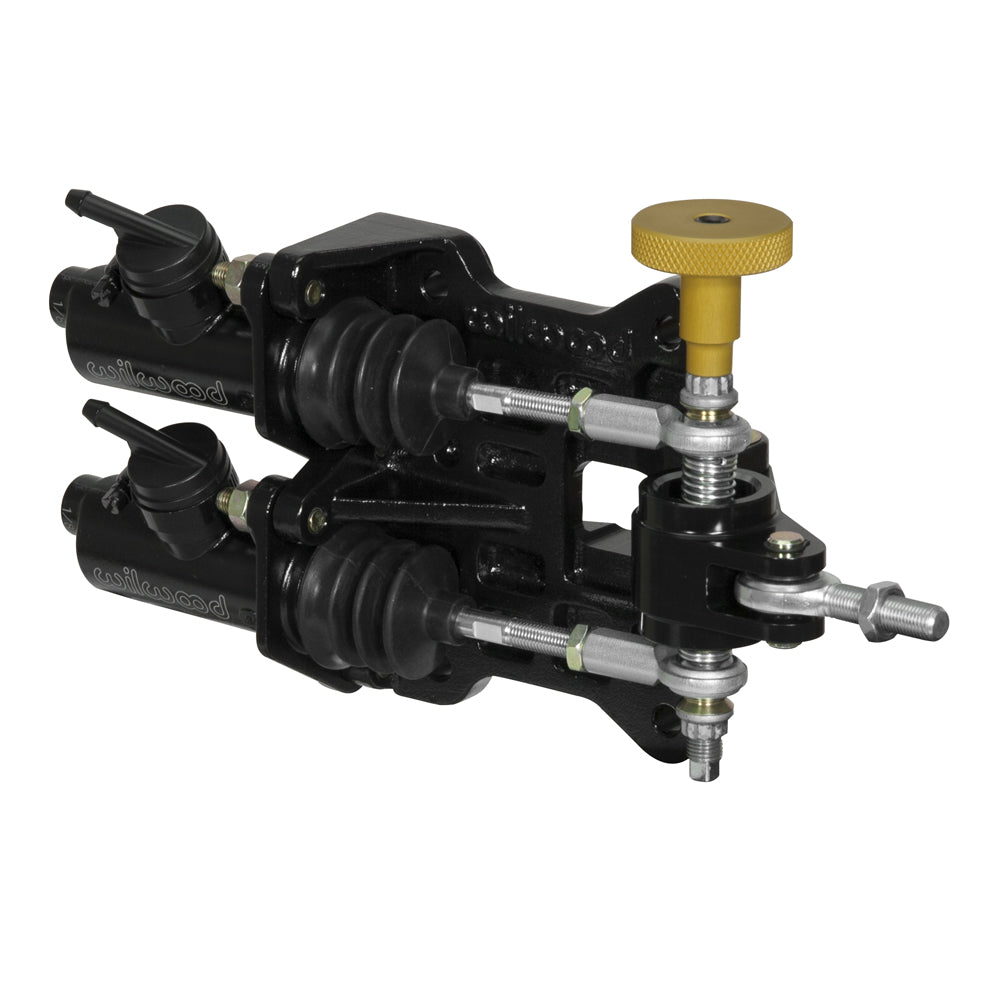

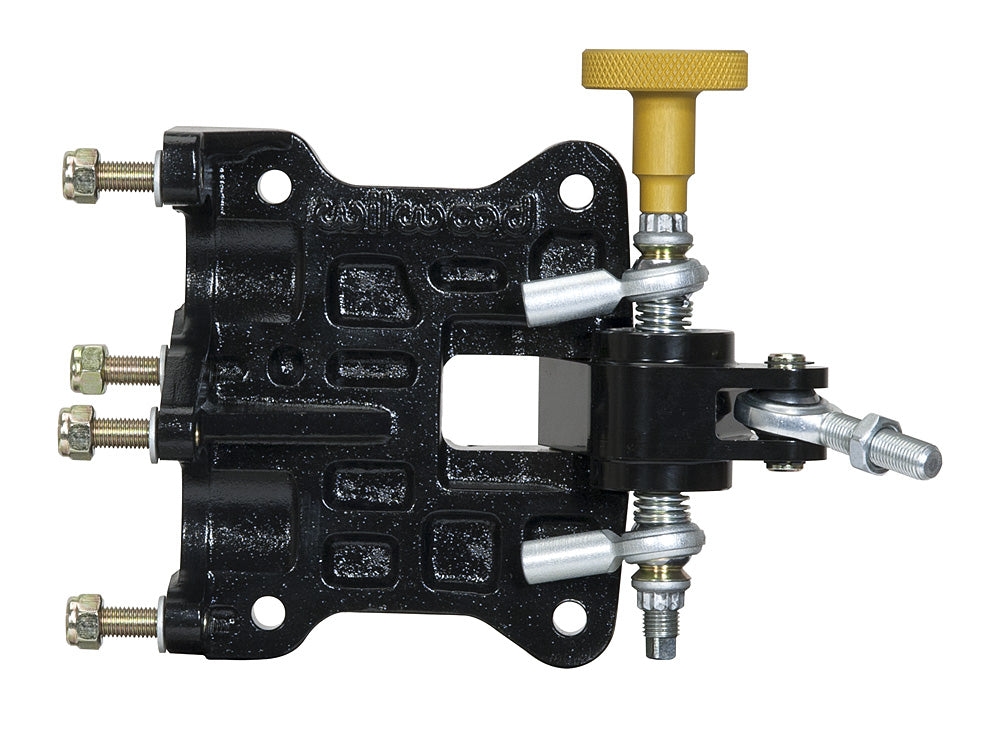

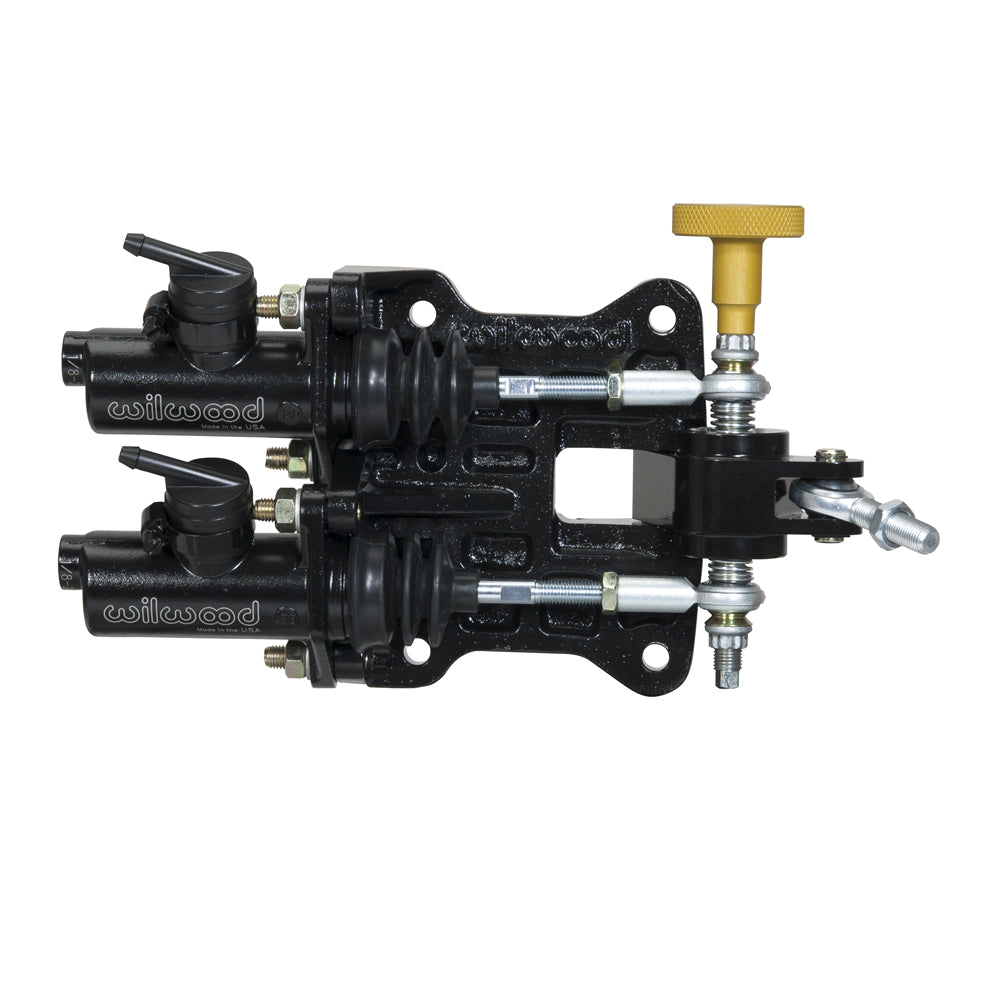

This remote mount stacks two brake master cylinders at a 60-degree angle and links them through a Tru-Bar bias mechanism. Its variable-leverage pivot adds approximately 1.5:1 force multiplication to the input pedal ratio, rather than serving as a complete foot pedal. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-14380
- Material: Aluminum
- Finish: Black E-coat
- Tru-Bar thread: 7/16-20 with 3/8-inch remote-adjuster end
- Foot pedal: Not included
- Master cylinders: Remote-fill type required, sold separately
- Pivot arm length: 2.55 inches
- Master-cylinder arrangement: 60-degree remote mount
- Average linkage ratio: Approximately 1.5:1
- Weight: 2.350 lb
- Mount length: 1.74 in
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1199 · Wilwood product specifications
Fitment & Compatibility
Use compatible remote-fill master cylinders, selected separately. Calculate the combined pedal leverage and check pushrod travel, mounting clearance and reservoir routing; the foot pedal is not included.
