Product details

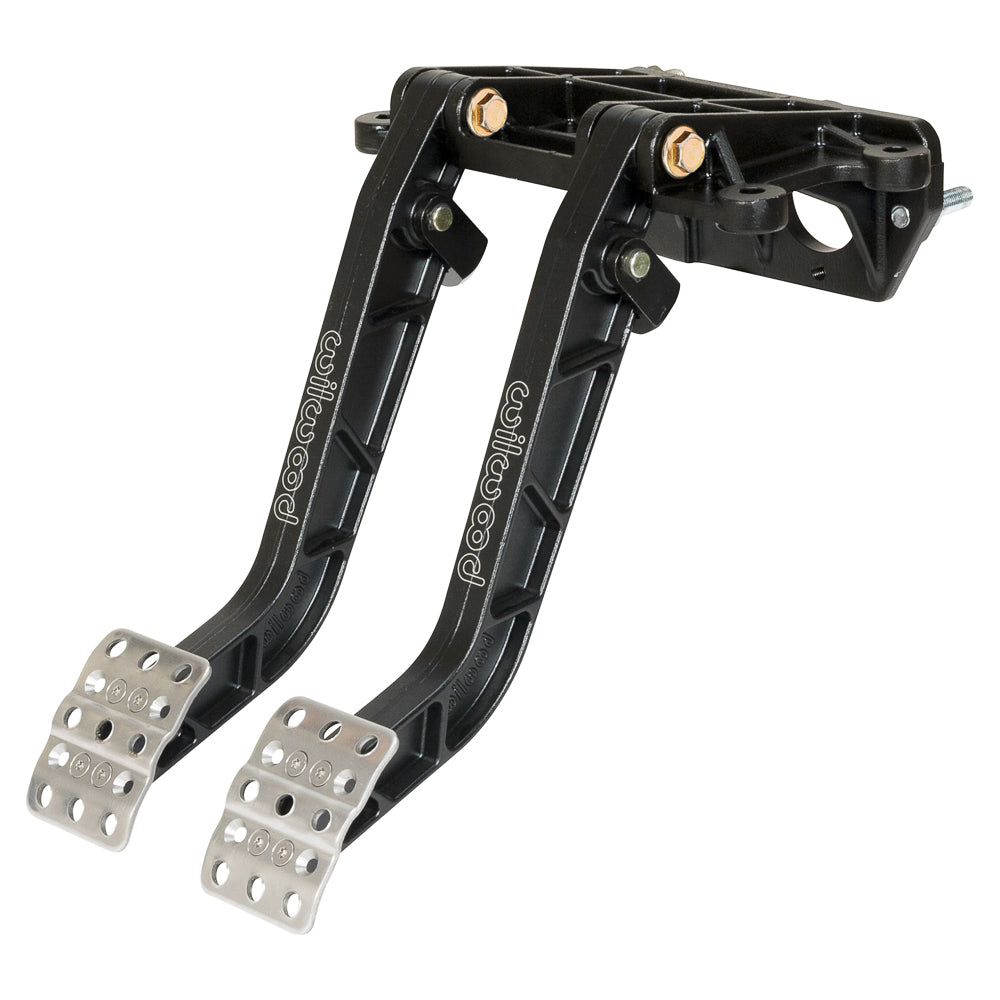

The 7:1 version of this Wilwood pedal pair operates a tandem brake master through one pushrod and a separate clutch master. Both forged arms are 12.10 inches long, and the forward-facing base positions the cylinders outside the firewall. Wilwood Engineering designs and manufactures complete disc brake systems as well as calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Based in Camarillo, California, it was founded by Bill Wood in 1977. The range serves motorsport, street-performance, and specialized applications, requiring each part to be matched to the system in which it operates.
Technical Details
- Manufacturer part number: 340-14361
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing, forward
- Ratio: 7.0 to 1
- Pedal Length: 12.10 in
- Balance bar: Not fitted
- Weight: 4.750 lb
- Mount length: 12.43 in
Wilwood technical instructions DS-1213 · Wilwood product specifications
Fitment & Compatibility
Check the tandem brake master's 3.25-inch horizontal mounting or the optional 2.50-inch vertical points, which need separate studs. The clutch cylinder uses a 2.25-inch vertical flange; there is no brake balance bar.
