Product details

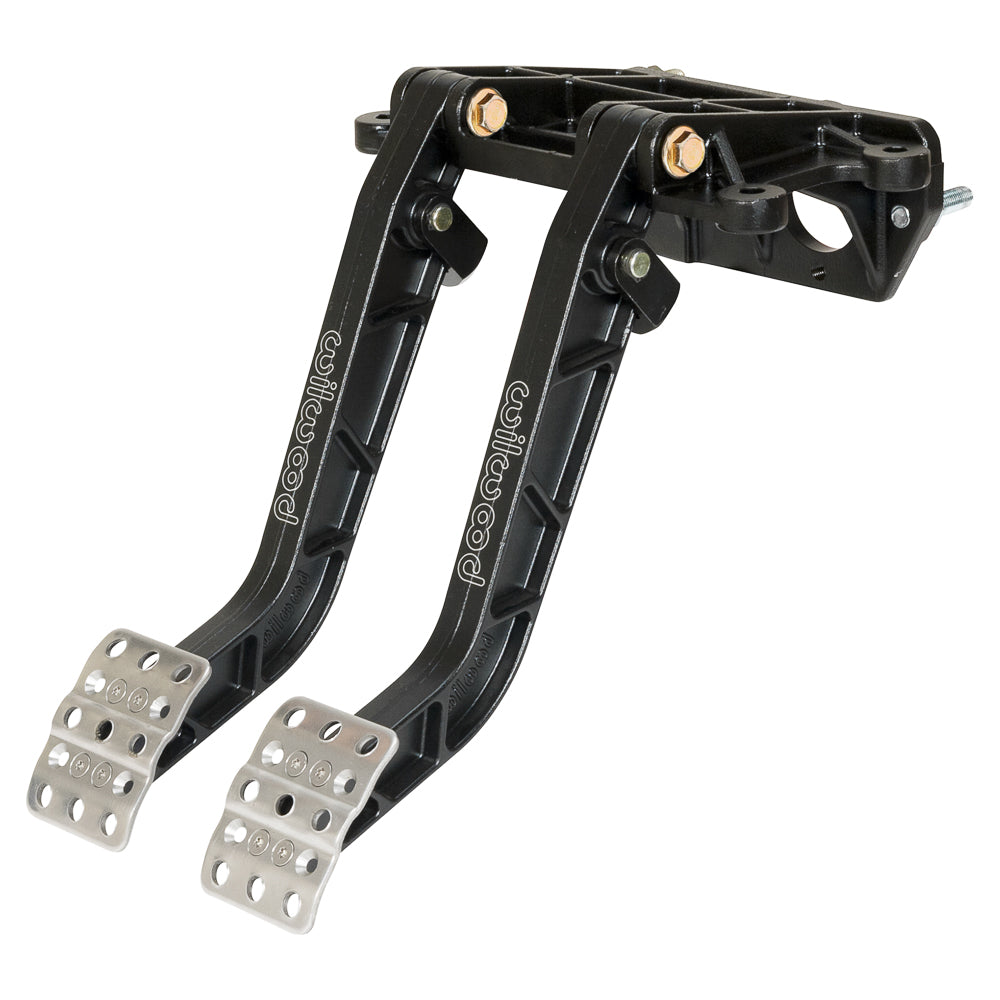

This forward swing assembly pairs a single-pushrod tandem brake pedal with a hydraulic clutch pedal, both at 6.25:1. It does not use a dual-brake-master balance bar, and the masters mount outside the firewall. For Wilwood Engineering's motorsport, street-performance, and specialized applications, component selection follows the requirements of the complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, where its business focuses on designing and manufacturing disc brake systems, calipers, rotors, master cylinders, valves, fittings, and lines.
Technical Details
- Manufacturer part number: 340-14360
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing, forward
- Ratio: 6.25 to 1
- Pedal Length: 12.05 in
- Balance bar: None
- Weight: 4.550 lb
- Mount length: 12.38 in
Wilwood technical instructions DS-1213 · Wilwood product specifications
Fitment & Compatibility
The brake mount accepts the specified 3.25-inch horizontal flange; additional 2.50-inch vertical mounting points require separate 5/16-18 studs. The clutch mount uses 2.25-inch vertical spacing. Confirm master dimensions and select cylinders separately.
