Product details

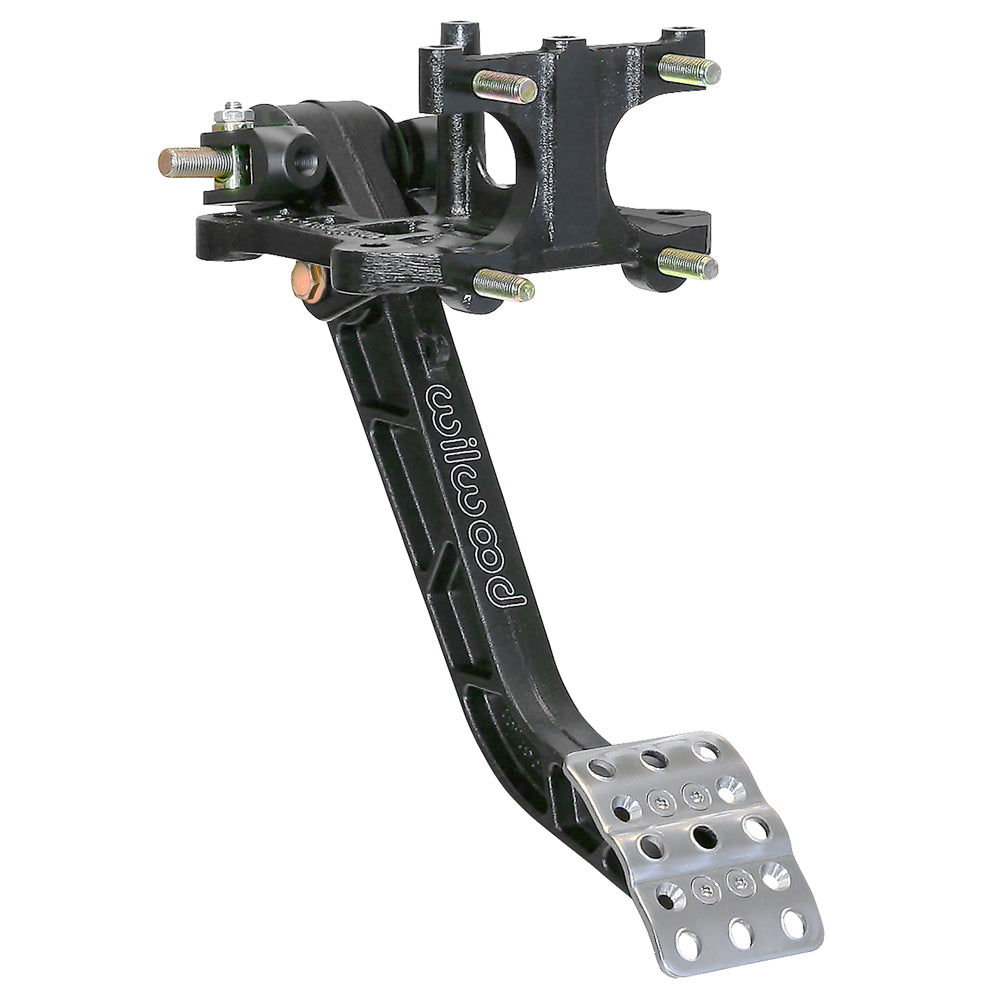

This single reverse-mount brake pedal uses the 10.14-inch, 5.1:1 arm with a balance bar for two separate master cylinders. It provides the short-lever alternative to the longer 6.25:1 reverse brake pedal. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California and designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings, and brake lines form part of its range for motorsport, street-performance, and specialized installations; suitability depends on the full brake-system arrangement.
Technical Details
- Manufacturer part number: 340-13837
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Ratio: 5.1 to 1
- Pedal Length: 10.14 in
- Balance bar: Included
- Master cylinder count: Two separate brake masters, sold separately
- Weight: 3.230 lb
- Mount length: 11.04 in
- Replaces earlier cast-arm assembly: 340-5180
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Verify that the selected master cylinder bores and strokes suit the 5.1:1 ratio. Both masters face inside the firewall and require the specified vertical mounting flanges; cylinders are not included.
