Product details

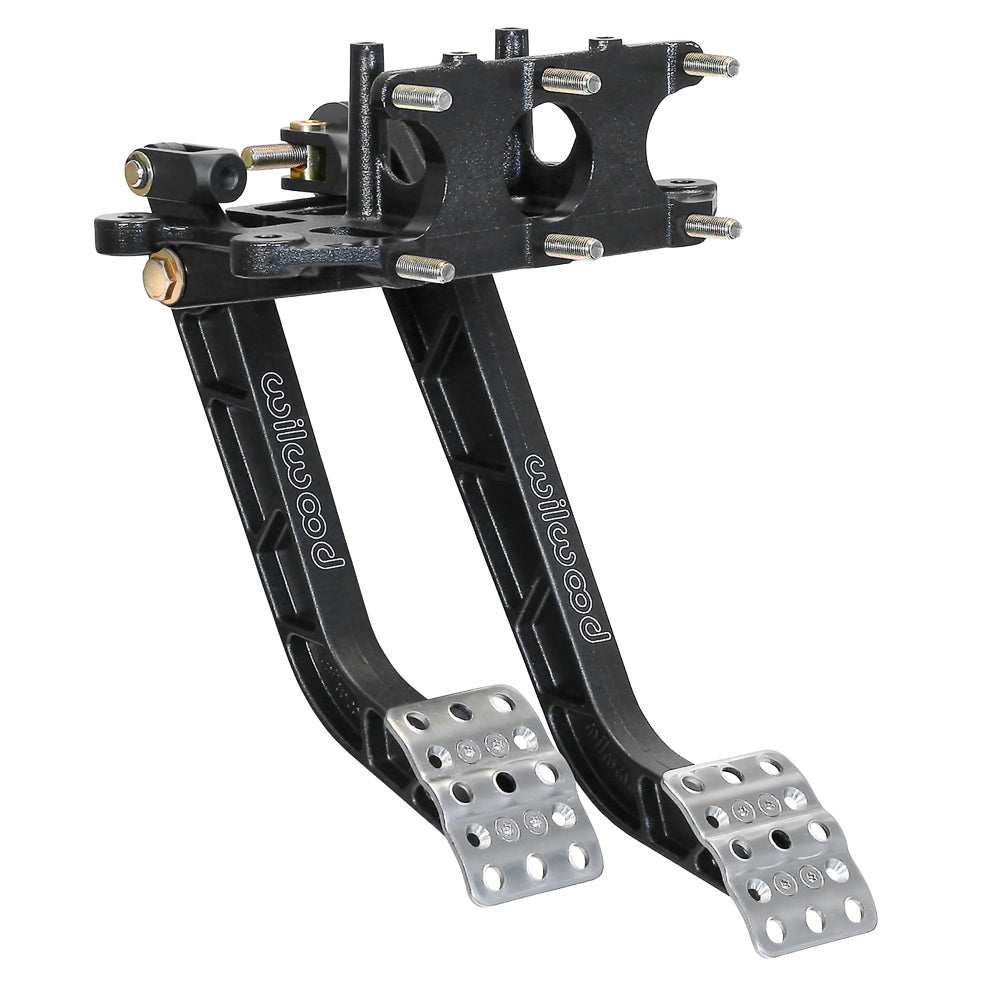

This reverse swing pedal set combines a 6.25:1 brake arm with a shorter 5.1:1 clutch arm. The unequal lengths provide a different clutch-pad position while retaining a balance bar for the pair of brake master cylinders. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977. Its range covers brake calipers, rotors, master cylinders, valves, fittings, and lines, which are selected according to the needs of the complete system.
Technical Details
- Manufacturer part number: 340-13836
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Brake ratio and length: 6.25:1; 11.89 inches
- Clutch ratio and length: 5.1:1; 10.14 inches
- Balance bar: Included
- Weight: 5.100 lb
- Mount length: 12.77 in
- Replaces earlier cast-arm assembly: 340-6451
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Check the 11.89-inch brake and 10.14-inch clutch arm lengths against the cockpit layout. Compatible master cylinders are separate and must provide the correct brake displacement and clutch release travel.
PMB Performance brings more than 20 years of parts and fitment experience. Contact us with the details of your existing assembly for help confirming the correct component.
