Product details

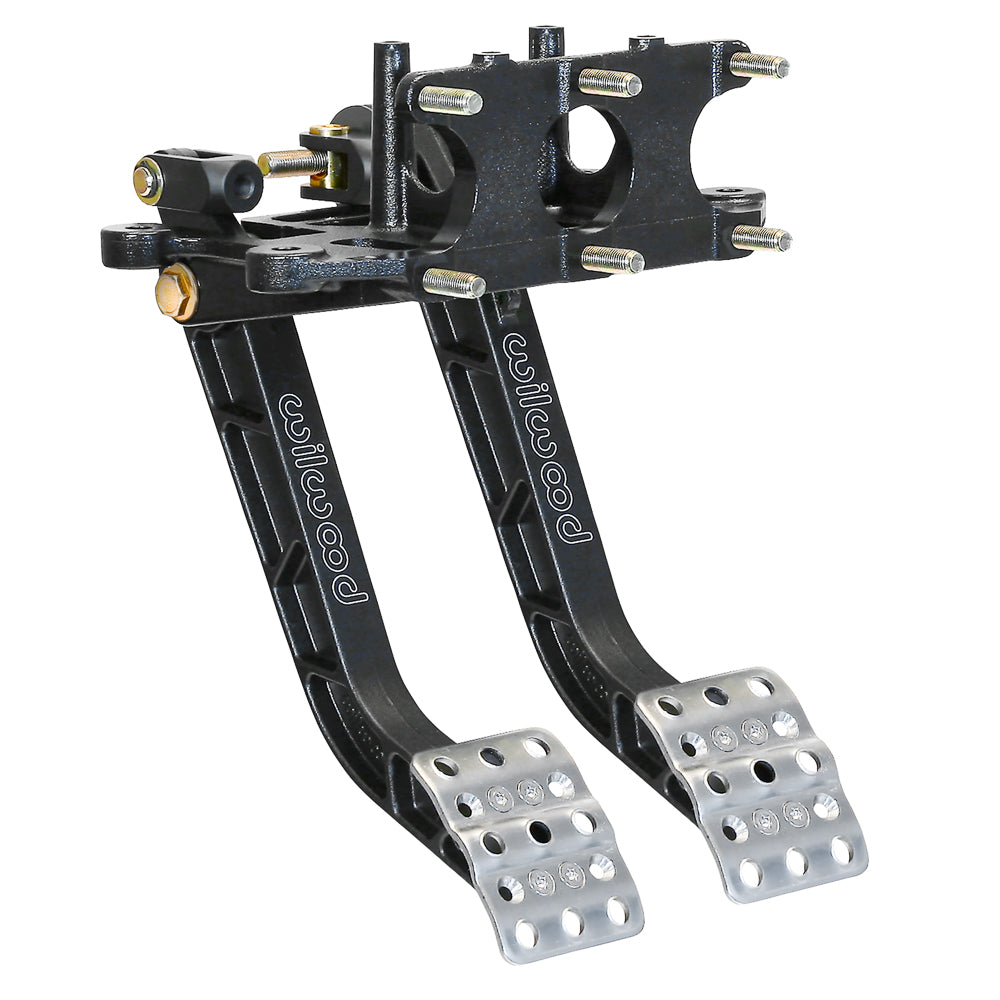

The 5.1:1 brake and clutch arms in this reverse swing assembly provide the shorter lever configuration of the Wilwood dual-pedal range. Master cylinders face into the vehicle, and a balance bar operates the two brake masters. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 340-13835
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Pedal Length: 10.14 in
- Brake ratio: 5.1:1
- Clutch ratio: 5.1:1
- Balance bar: Included
- Weight: 5.040 lb
- Mount length: 11.02 in
- Replaces earlier cast-arm assembly: 340-4828
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Compare the 10.14-inch pedal lengths with the required driver position and master stroke. Use matching vertical-flange master cylinders, ordered separately, and allow clearance throughout both pedals' travel.
