Product details

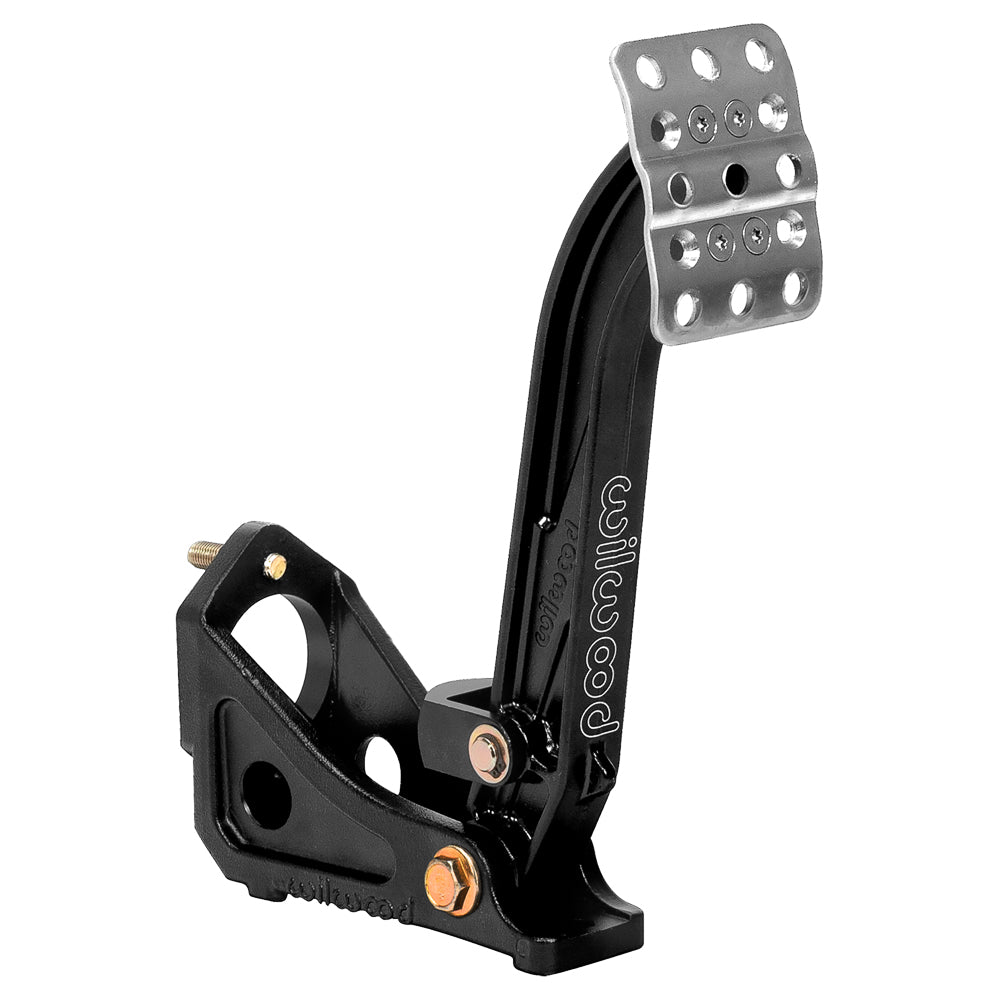

The single-master floor pedal provides a 6:1 input for a hydraulic clutch or an appropriately configured brake system. Unlike a dual-master brake pedal, it drives one pushrod and does not include a brake-bias balance bar. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 340-13833
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Forward
- Ratio: 6.0 to 1
- Pedal Length: 9.63 in
- Balance bar: Not fitted
- Foot pad: Lateral adjustment
- Weight: 1.850 lb
- Mount length: 10.42 in
- Replaces earlier cast-arm assembly: 340-1289
Wilwood product specifications · Wilwood product guide FL369
Fitment & Compatibility
For four-wheel braking, Wilwood requires a tandem-outlet, two-circuit master cylinder. A horizontal mounting flange needs adapter 250-3677; confirm master bore, pushrod travel and floor clearance.
PMB Performance can help review the mating parts before you place an order. Our team draws on over 20 years of experience with parts and application details.
