Product details

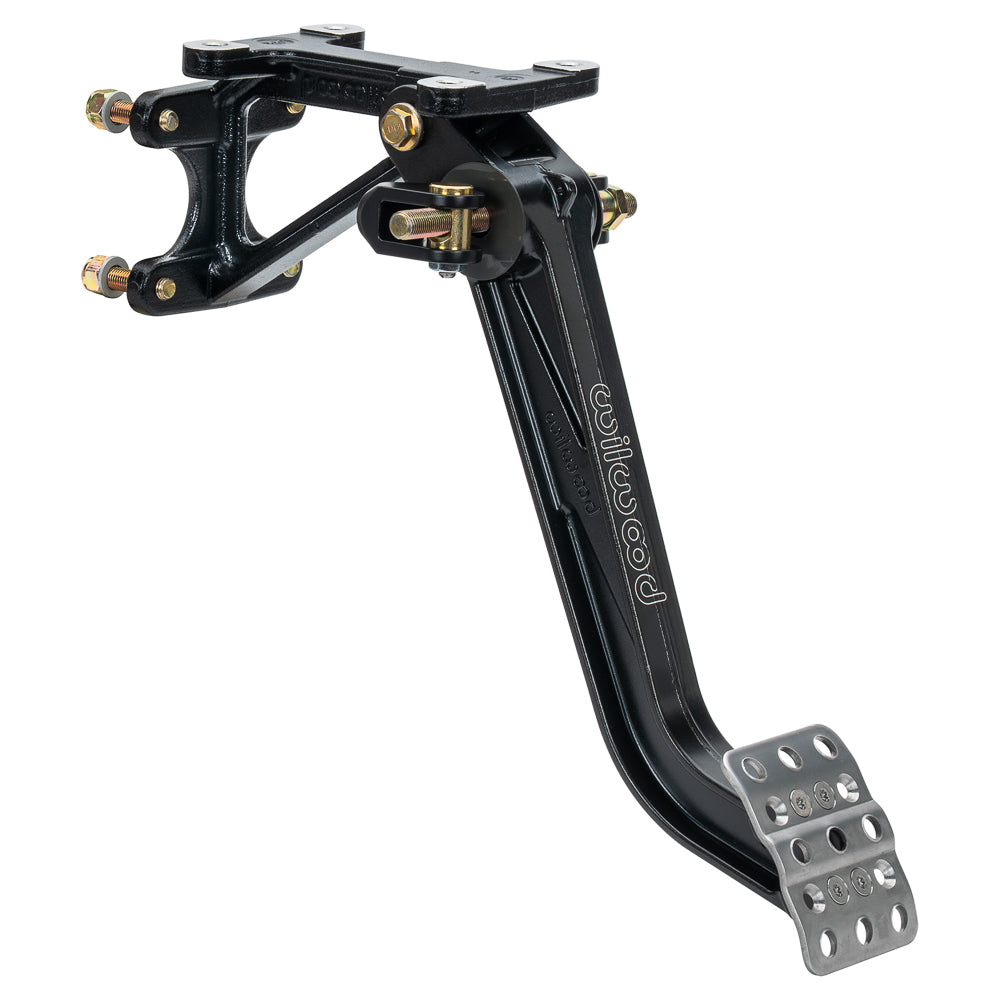

This hanging brake pedal places two separate master cylinders forward of the firewall and uses a 7:1 forged lever. The balance bar adjusts how pedal force is shared between the two hydraulic circuits. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings, and brake lines serve motorsport, street-performance, and specialized applications, with each component selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-13832
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Ratio: 7.0 to 1
- Pedal Length: 12.11 in
- Balance bar: Included with locking adjustment
- Master cylinder orientation: Forward of firewall
- Weight: 2.950 lb
- Mount length: 12.85 in
- Replaces earlier cast-arm assembly: 340-1287
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Confirm the mounting structure and engine-side master cylinder clearance. Order compatible vertical-flange single-outlet masters separately, and set the balance bar for the installed front and rear brakes.
