Product details

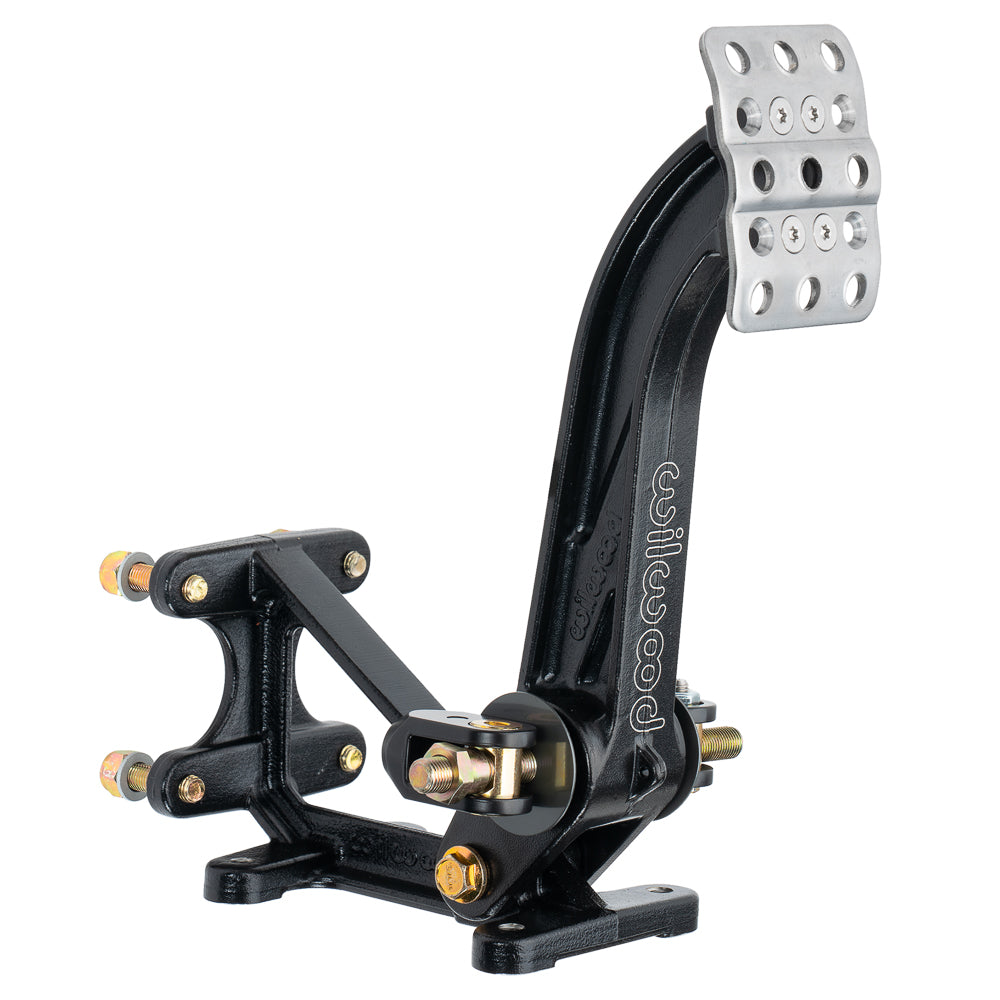

The floor-mounted brake pedal supports two forward-facing single-outlet master cylinders and includes a balance bar between them. Its forged arm provides a 6:1 nominal ratio, with a laterally adjustable foot pad for pedal spacing. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.
Technical Details
- Manufacturer part number: 340-13831
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Forward
- Ratio: 6.0 to 1
- Pedal Length: 9.60 in
- Master cylinders: Two, selected separately
- Balance bar: Included
- Weight: 2.770 lb
- Mount length: 10.34 in
- Replaces earlier cast-arm assembly: 340-1285
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Choose both master cylinders for the complete brake system and check their vertical mounting flanges. Allow full pedal and pushrod travel; the assembly is a custom-installation component rather than a direct-fit factory pedal.
