Product details

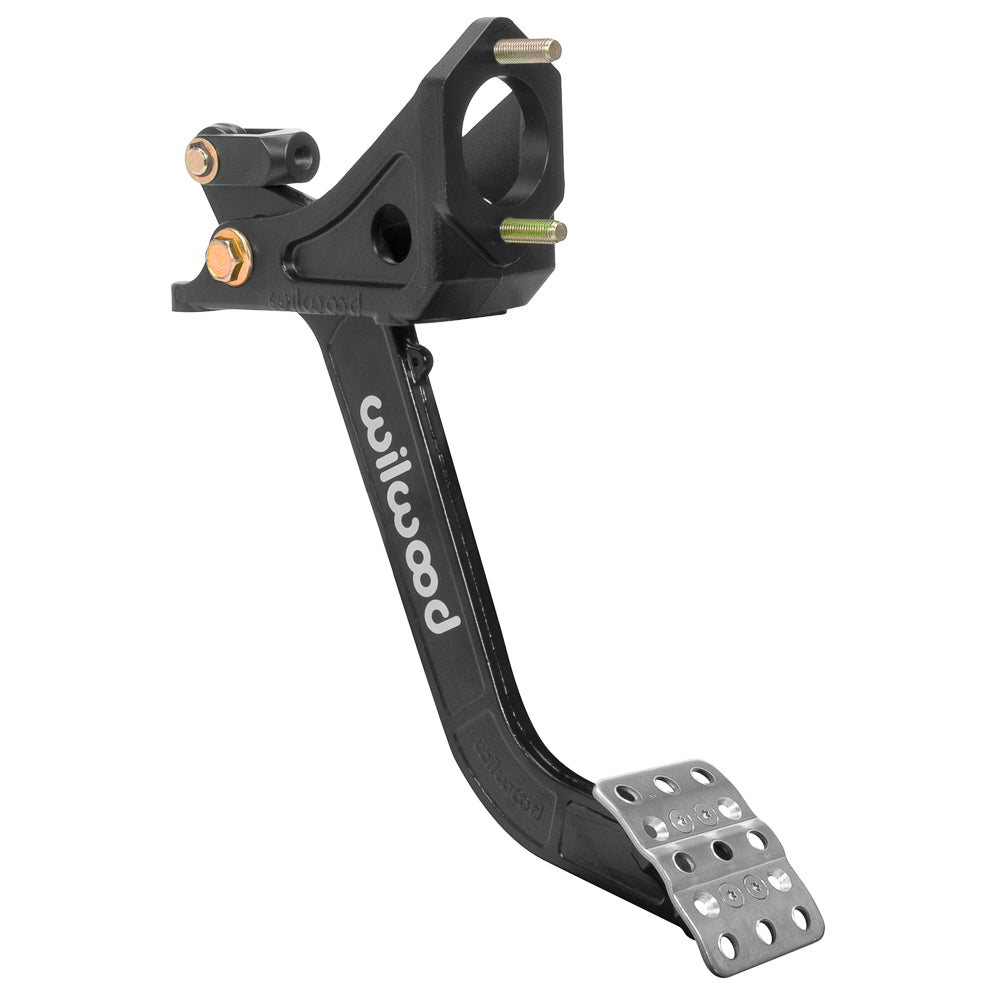

This 6:1 reverse swing pedal operates one master cylinder for a clutch or the specified brake arrangement. It has no balance bar, and its master cylinder mounts inside the firewall rather than forward into the engine compartment. The complete brake installation determines which Wilwood component is appropriate. Wilwood Engineering designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977, and it is based in Camarillo, California.
Technical Details
- Manufacturer part number: 340-13574
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Ratio: 6.0 to 1
- Pedal Length: 12.02 in
- Balance bar: None
- Foot pad: Laterally adjustable
- Weight: 2.430 lb
- Mount length: 11.28 in
Wilwood technical instructions DS-1071 · Wilwood product specifications
Fitment & Compatibility
A four-wheel brake installation requires a two-circuit tandem-outlet master, not a single-outlet unit. Horizontal-flange tandem masters require adapter kit 250-3677; select the master cylinder separately.
