Product details

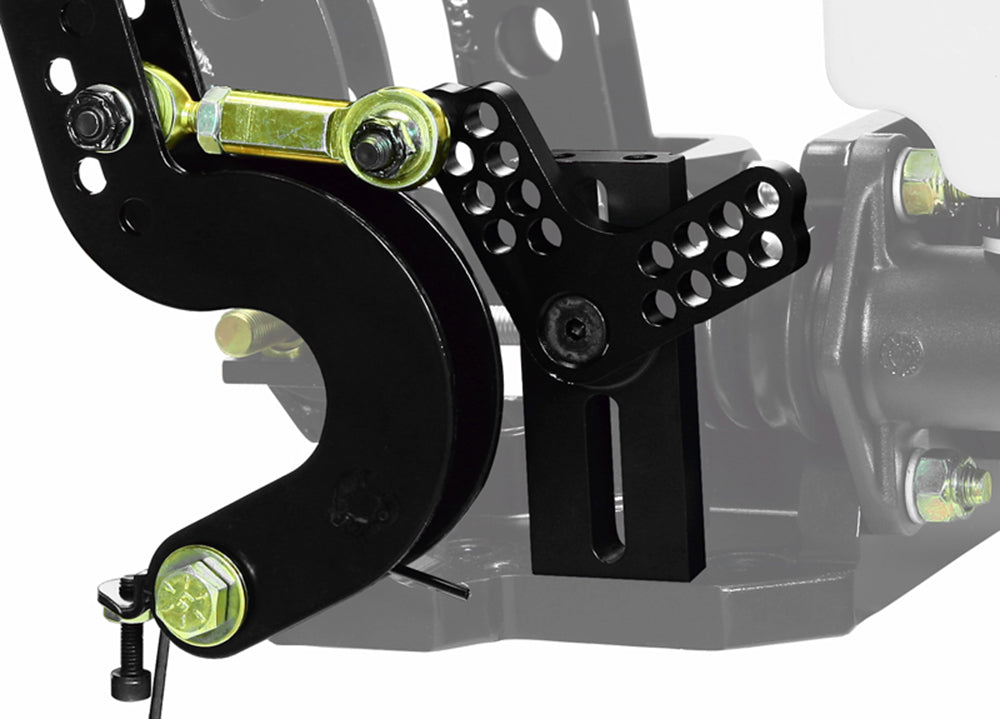

This bell crank and linkage assembly redirects the throttle connection on the matching Wilwood triple floor pedal unit. It can service the linkage-equipped version or convert the corresponding rear-engine pedal layout for front-engine use. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-12412
- Material: Aluminum / Steel
- Finish: Black E-coat
- Use: Throttle linkage for Wilwood 340-12410 / 340-12411 floor pedals
- Weight: 0.500 lb
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Wilwood specifies it for pedal assemblies 340-12410 and 340-12411. Confirm the engine-side throttle connection, required travel and return arrangement; the kit does not include the complete pedal set.
