Product details

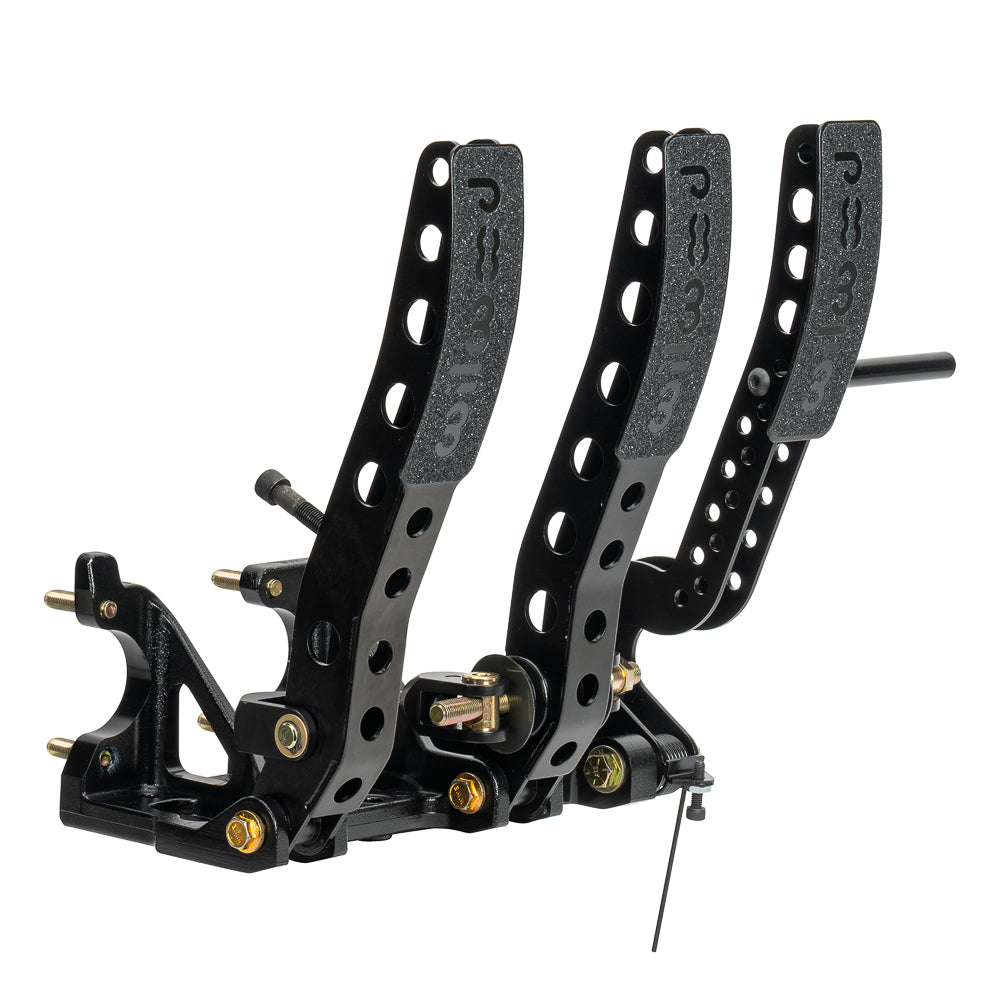

This floor-mounted triple pedal assembly combines brake, clutch and throttle controls on an aluminum frame with fabricated steel arms. The rear-engine version omits the throttle bell crank and linkage, allowing the throttle connection to suit that layout. For Wilwood Engineering's motorsport, street-performance, and specialized applications, component selection follows the requirements of the complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, where its business focuses on designing and manufacturing disc brake systems, calipers, rotors, master cylinders, valves, fittings, and lines.
Technical Details
- Manufacturer part number: 340-12410
- Material: Aluminum / Steel
- Finish: Black E-coat
- Mount Type: Floor; Forward
- Ratio: 5.25 to 1
- Pedal Length: 10.66 in
- Throttle bell crank and linkage: Not included
- Balance bar: Included
- Weight: 6.750 lb
- Mount length: 11.40 in
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-907 · Wilwood product specifications
Fitment & Compatibility
The brake and clutch nominal ratio is 5.25:1. Plan the floor mounting, master cylinder selection and throttle connection for the vehicle; the brake balance bar is included, but a vehicle-specific installation is not implied.
