Product details

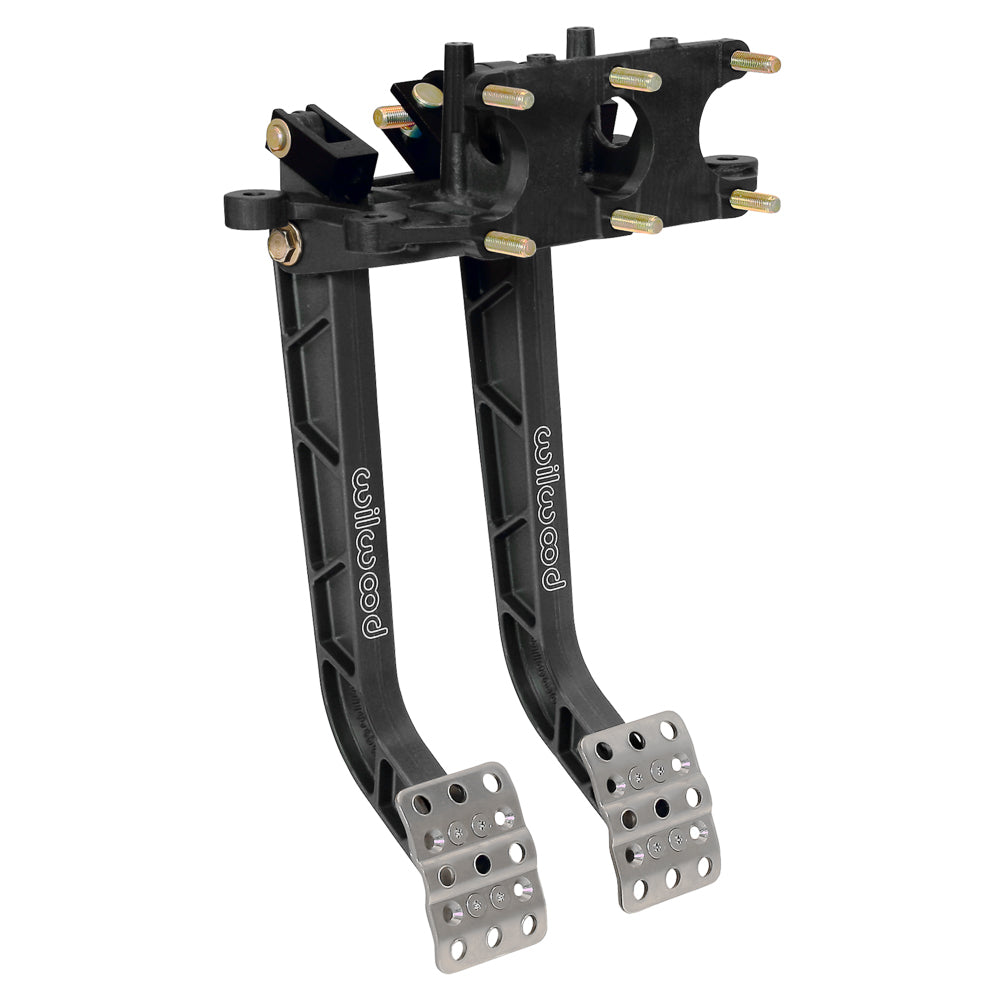

The reverse-facing layout of this brake-and-clutch pedal set locates its master cylinders inside the firewall. The two 6.25:1 forged arms have adjustable foot-pad positions, while the brake balance bar apportions force between separate brake masters. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 340-11299
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Ratio: 6.25 to 1
- Pedal Length: 11.89 in
- Balance bar: Included
- Master cylinder location: Inside firewall, reverse-facing
- Pedal-pad adjustment: Lateral
- Weight: 5.300 lb
- Mount length: 12.22 in
- Replaces earlier cast-arm assembly: 340-3342
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-762 · Wilwood product specifications
Fitment & Compatibility
Allow room inside the footwell for the masters, pushrods and full pedal travel. Compatible vertical-flange single-outlet master cylinders and any remote bias cable are selected separately.
For a modified installation, the actual hardware matters as much as the vehicle identity. PMB Performance has over 20 years of experience helping customers work through those fitment details.
