Product details

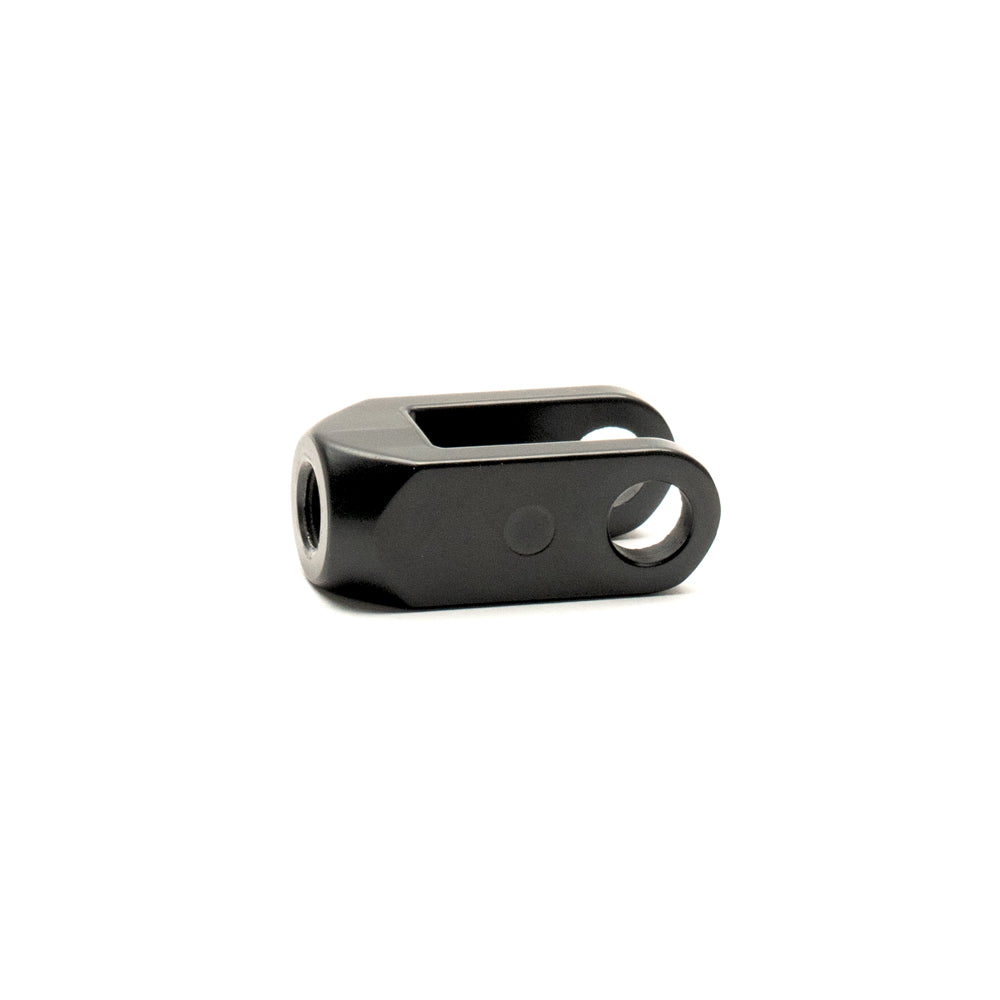

This 3/8-24 die-cast clevis is specified for a Wilwood brake pedal operating a tandem master cylinder. It connects the pedal to the master pushrod and should not be selected as a clutch clevis simply because the linkage looks similar. The complete brake installation determines which Wilwood component is appropriate. Wilwood Engineering designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977, and it is based in Camarillo, California.
Technical Details
- Manufacturer part number: 330-13193
- Material: Aluminum
- Finish: Black
- Quantity: 1
- Thread: 3/8-24
- Application: Brake pedal, tandem master cylinder
- Weight: 0.050 lb
Wilwood product specifications
Fitment & Compatibility
Match the cast pedal assembly and tandem master cylinder pushrod. Confirm thread engagement and the clevis-to-pedal interface using the assembly's parts diagram.
PMB Performance offers fitment support backed by more than 20 years of experience. Share the specifications of the matching assembly so the component can be checked in context.
