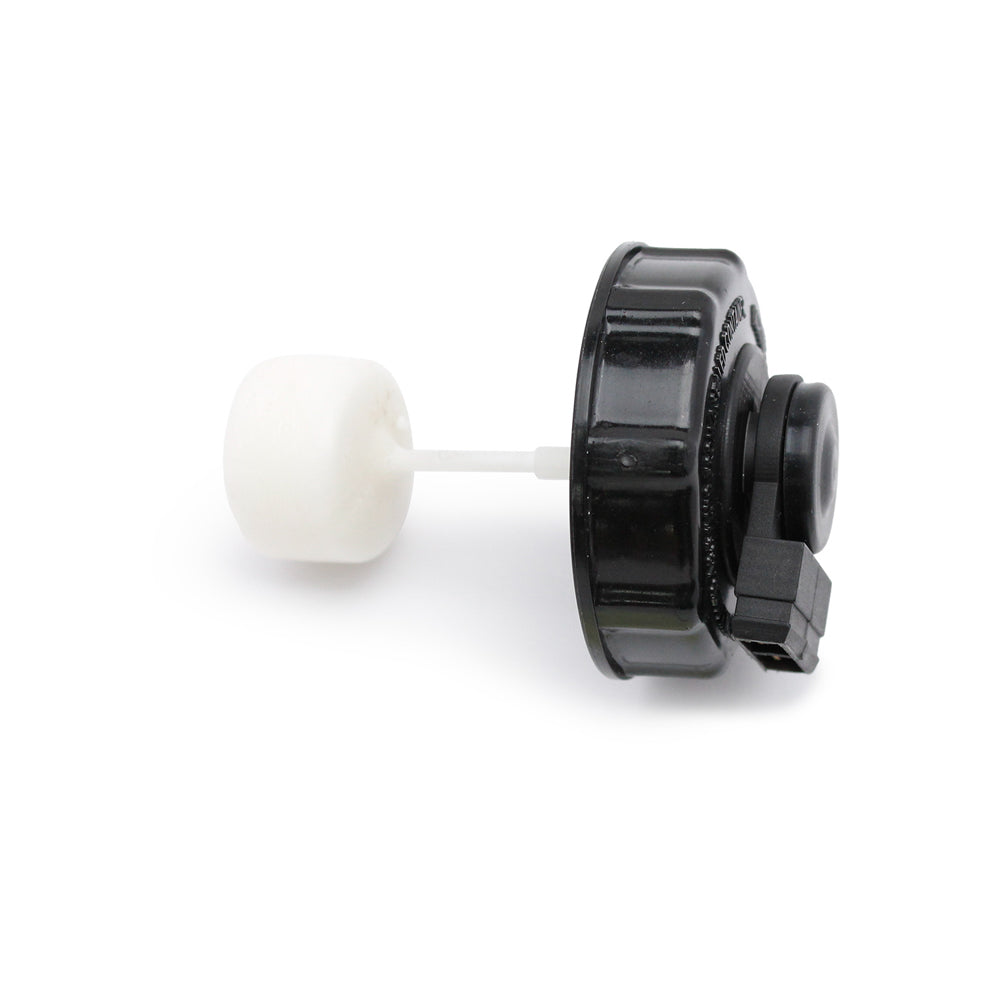

Wilwood 4 oz Reservoir Cap with Fluid Level Sensor, 2.34-Inch Float

This remote reservoir cap incorporates an electronic float to signal low brake fluid level in the matching Wilwood 4 oz reservoir. The 2.34-inch float length is specific to that reservoir depth; this is not just a plain sealing cap. For Wilwood Engineering's motorsport, street-performance, and specialized applications, component selection follows the requirements of the complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, where its business focuses on designing and manufacturing disc brake systems, calipers, rotors, master cylinders, valves, fittings, and lines.

Technical Details

• Manufacturer part number: 330-12645
• Material: Plastic
• Finish: Black
• Quantity: 1
• Float length: 2.34 inches
• Reservoir: Compatible Wilwood 4 oz remote reservoir
• Electrical connection: 12 V DC, male terminals
• Weight: 0.050 lb
• Cap thread: 1.69 / 1.83 in, 7 TPI
• Cap markings: DOT 3, DOT 4 and DOT 5; follow the brake-system fluid specification

Wilwood product specifications

Fitment & Compatibility

Confirm reservoir capacity, cap thread, float clearance and the 12 V DC warning circuit connection. Cap markings do not override the brake system's specified fluid type.
