Wilwood 0.50-Inch-Rotor Pad Retaining Clip for Dynapro, NDP and DPHA

Wilwood specifies this 3.22-inch retaining clip for Dynapro Lug Mount and Narrow Dynapro calipers with 0.50-inch rotors. It also serves the DPHA Honda/Acura replacement-caliper design, subject to the installed caliper specification. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Founded by Bill Wood in 1977, it serves motorsport, street-performance and specialized applications with calipers, rotors, master cylinders, valves, fittings and brake lines that must be selected as part of a matched braking system.

Technical Details

• Manufacturer part number: 300-9635
• Material: Steel
• Finish: Plated
• Package: 1 pad retaining clip
• Weight: 0.070 lb

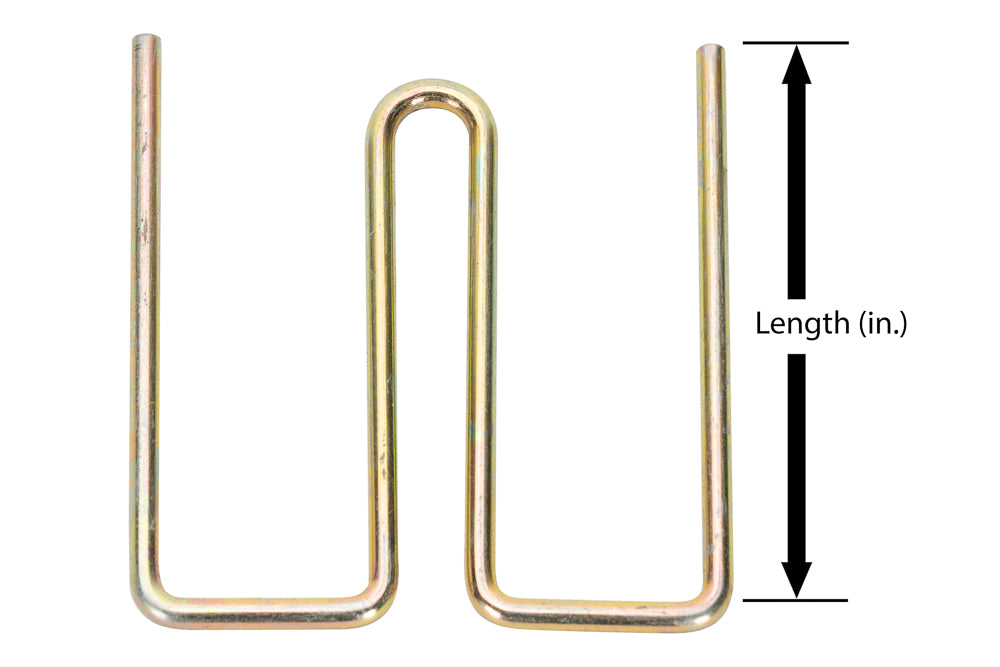

• Clip length: 3.22 in
• Dynapro/NDP rotor width: 0.50 in
• Additional caliper application: DPHA Honda/Acura replacement calipers

Fitment & Compatibility

Confirm the 0.50-inch rotor configuration for Dynapro Lug Mount or NDP, or identify the matching DPHA replacement caliper. Vehicle make alone does not identify the correct clip; match the caliper and 3.22-inch length.

Manufacturer Documents

• Wilwood hardware specifications

PMB Performance’s team has over 20 years of experience with brake parts and fitment. If the assembly is uncertain, contact us with its part numbers, measurements and vehicle details.
