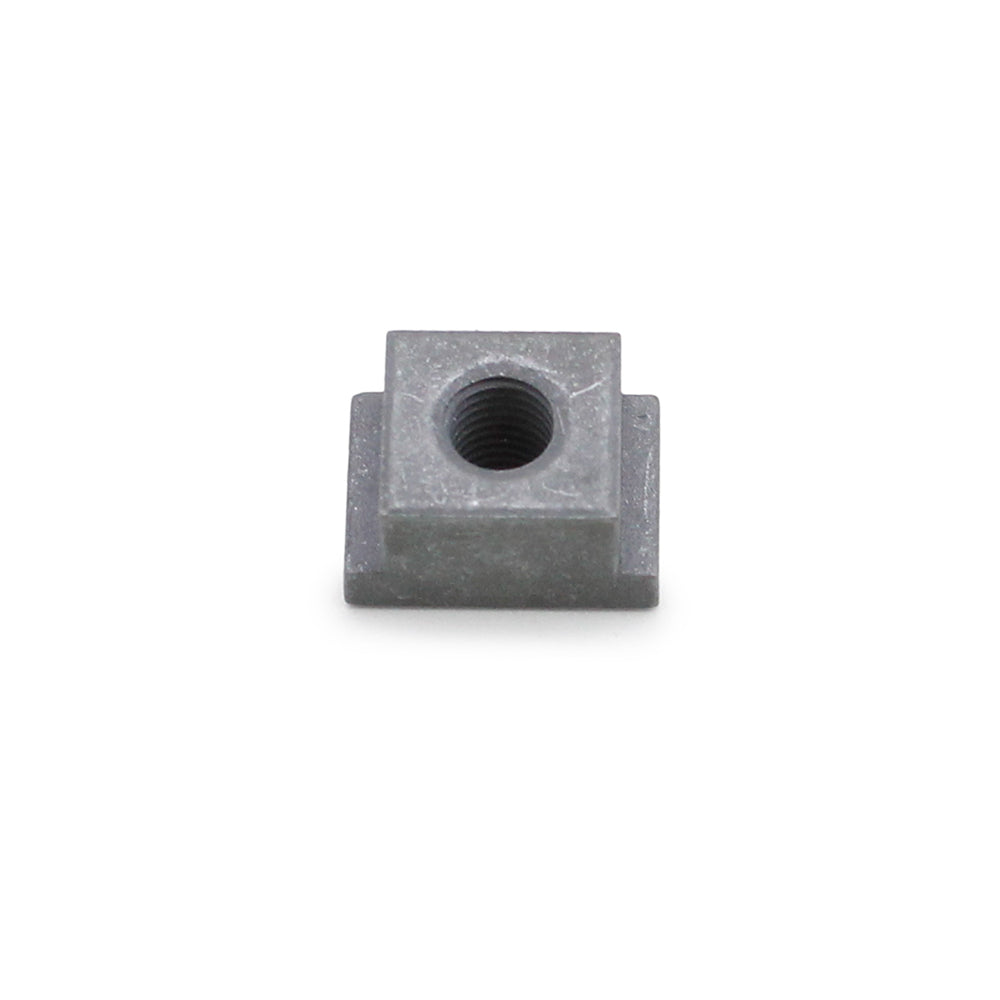

Wilwood Steel Dynamic Rotor T-Nut, 1/4-28 Thread, 0.030-Inch Offset

This Wilwood steel T-nut provides the threaded attachment in a matching dynamic rotor hat or adapter. The 1/4-28 thread and 0.03-inch offset identify this coated version and must match the rotor mounting design. Founded in 1977 by Bill Wood, Wilwood Engineering designs and manufactures disc-brake systems from Camarillo, California. Its range of calipers, rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications. Individual parts must be matched to the requirements of the complete system.

Technical Details

• Manufacturer part number: 300-8429
• Material: Steel
• Finish: Coated
• Package: 1 coated steel T-nut
• Weight: 0.020 lb
• Thread: 1/4-28
• Offset: 0.03 in
• Application: dynamic-mount rotor hat or adapter

Fitment & Compatibility

Confirm the dynamic-mount slot accepts this T-nut profile and 0.03-inch offset. Use the specified 1/4-28 rotor fastener and installation procedure for the hat or adapter.
