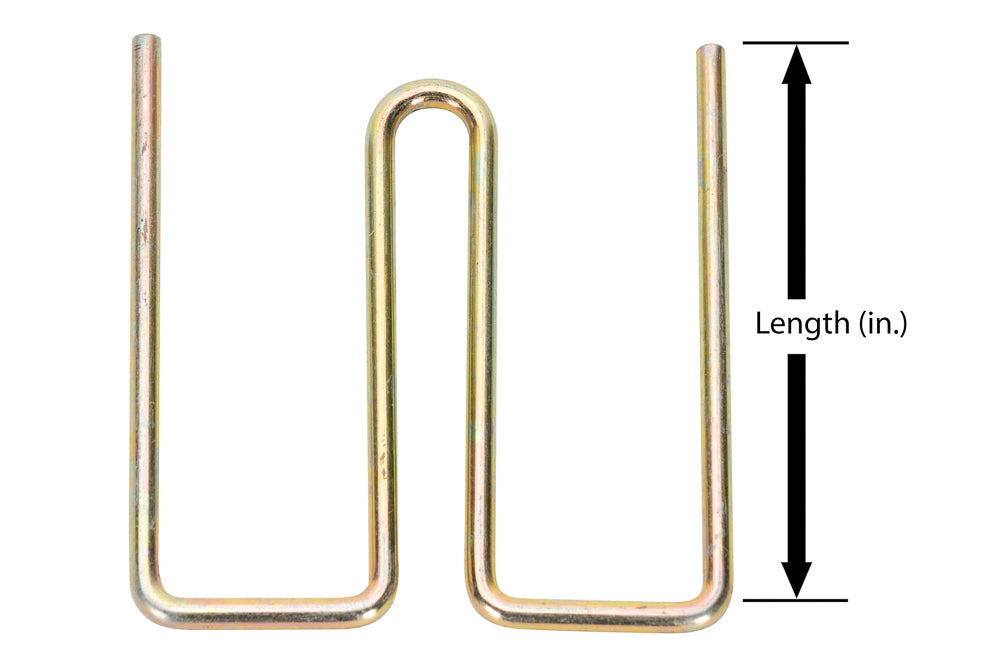

Wilwood 3.80-Inch Pad Retaining Clip for DPR and First-Generation DP6

This 3.80-inch Wilwood retainer secures pads in the wider-rotor DPR and first-generation DP6 calipers. The plated steel clip suits 0.810-1.00-inch DPR rotors or 0.810-1.10-inch early DP6 rotors. Wilwood Engineering has designed and manufactured disc-brake systems since Bill Wood founded the company in 1977. Its Camarillo, California operation supplies calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Matching individual components to the full brake system remains essential.

Technical Details

• Manufacturer part number: 300-7316
• Material: Steel
• Finish: Plated
• Package: 1 pad retaining clip
• Weight: 0.070 lb
• Length: 3.80 in
• First-generation DP6 rotor widths: 0.810-1.10 in
• Current DPR rotor widths: 0.810-1.00 in

Fitment & Compatibility

Identify the caliper generation before comparing rotor widths. Use the 0.810-1.10-inch range only for first-generation DP6 and the 0.810-1.00-inch range for current DPR, then match the 3.80-inch clip.

Manufacturer Documents

• Wilwood hardware specifications

PMB Performance has over 20 years of experience helping customers select brake-system parts. Share the existing assembly information so we can help you check the details before ordering.
