Product details

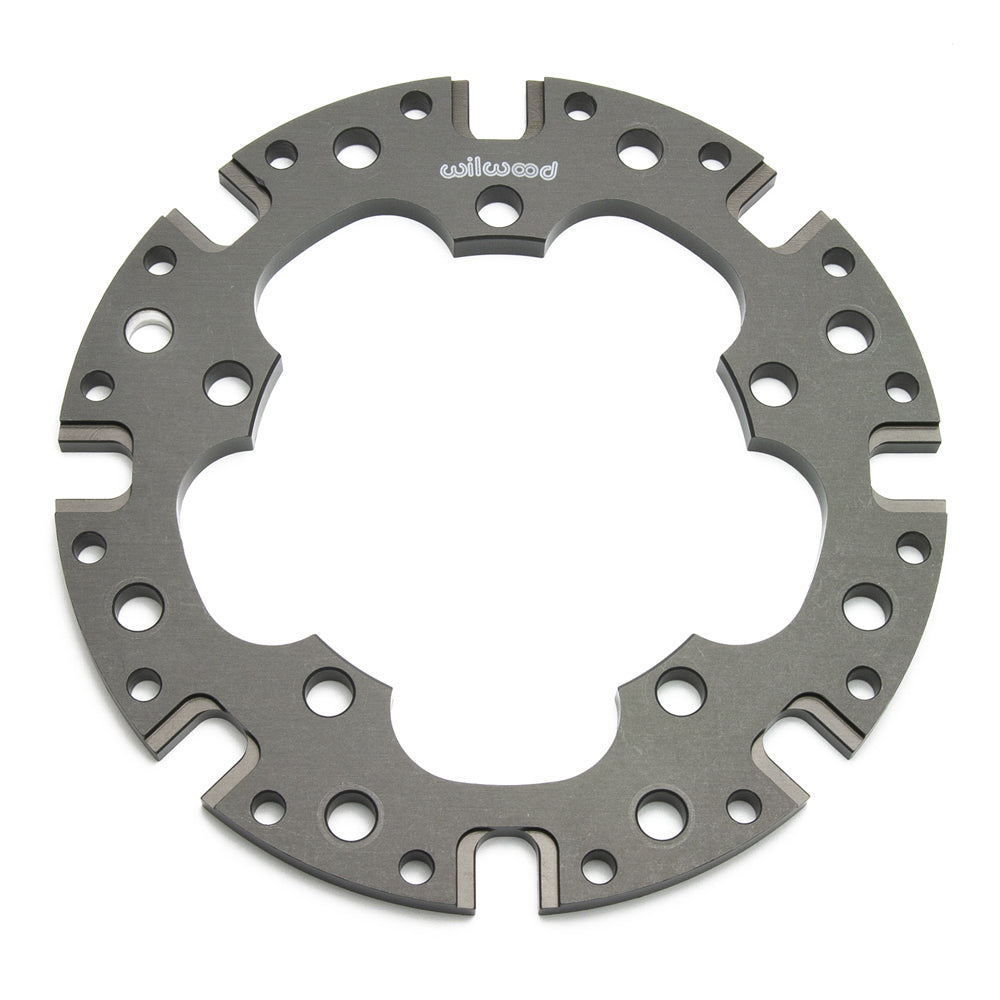

This Wilwood adapter connects a backside-mount asphalt racing hub or GEN III Sprint inboard hub to a floating brake rotor. It combines a 5 x 4.875-inch hub mounting circle with an 8 x 7.00-inch rotor circle in hard-anodized aluminum. Wilwood Engineering’s disc-brake range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems. Bill Wood founded the company in 1977, and its base is Camarillo, California. Each part is chosen to suit the operating and installation requirements of the whole brake system.
Technical Details
- Manufacturer part number: 300-7107
- Material: Aluminum
- Finish: Type III Anodize
- Package: 1 floating rotor adapter
- Weight: 0.620 lb
- Hub bolt circle: 5 x 4.875 in
- Rotor bolt circle: 8 x 7.00 in
- Rotor bolt/T-nut kit: 230-14845
Fitment & Compatibility
Match the backside hub or GEN III Sprint inboard assembly to both bolt circles and the specified adapter offset. Wilwood calls for rotor bolt and T-nut kit 230-14845 for the dynamic rotor attachment.
Manufacturer Documents
Contact PMB Performance with the existing part identification and brake-system configuration for selection assistance. We draw on over 20 years of experience with parts and fitment.
