Product details
These Wilwood aluminum adapters mount eight-bolt brake rotors to Pro Street and Drag front hubs. The pair uses a 5 x 3.88-inch hub pattern and an 8 x 7.00-inch rotor interface, including the 12.19-inch rotor arrangement in kit 140-11547. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. The company designs and manufactures complete disc-brake systems and parts, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Selection depends on the complete brake-system configuration.
Technical Details
- Manufacturer part number: 300-3099-2
- Material: Aluminum
- Finish: Plain
- Package: 2 front rotor adapters
- Weight: 1.500 lb
- Rotor size designation: 11.75 in
- Additional rotor application: 12.19 in in kit 140-11547
- Rotor bolt circle: 8 x 7.00 in
- Hub bolt circle: 5 x 3.88 in
Fitment & Compatibility
Match the hub to the 5 x 3.88-inch attachment and select the rotor and caliper as a complete brake package. The 8 x 7.00-inch rotor circle is used with the listed 11.75-inch configuration and the 12.19-inch rotor in kit 140-11547; rotor diameter alone does not establish compatibility.
Manufacturer Documents

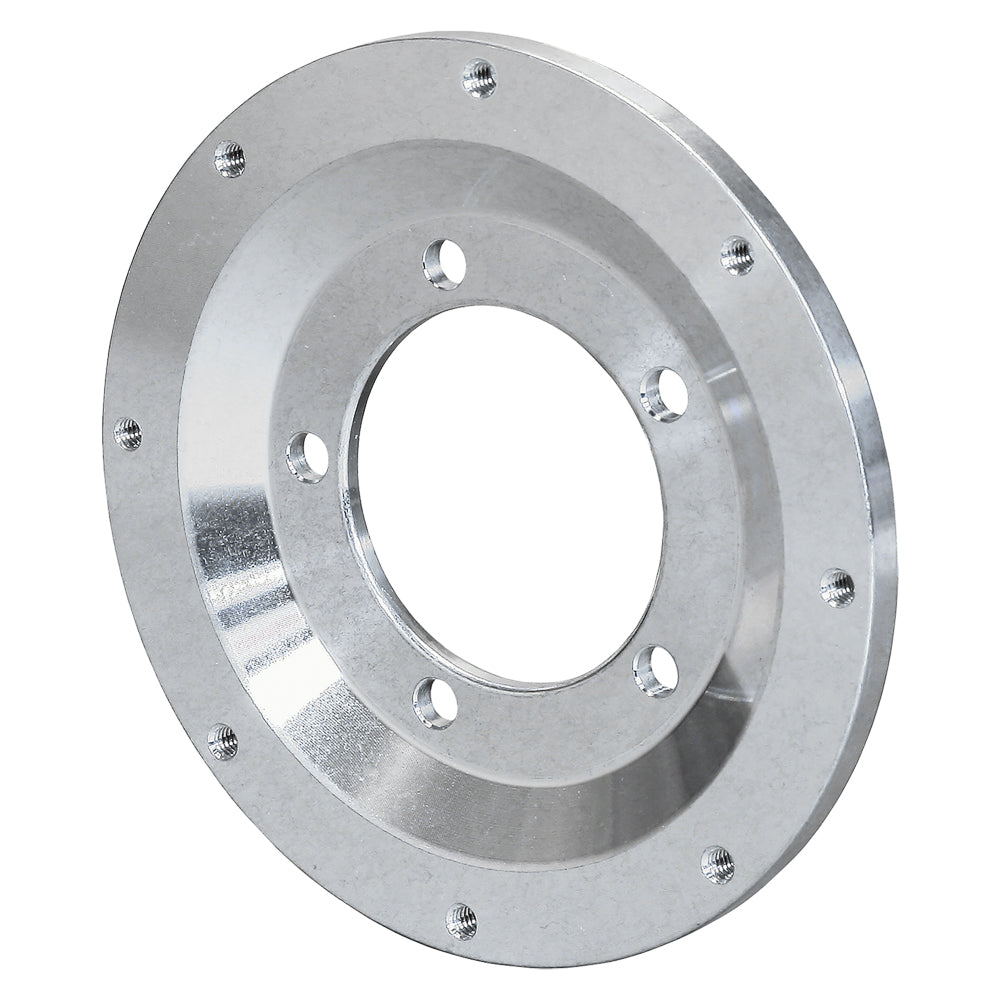

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
