Product details

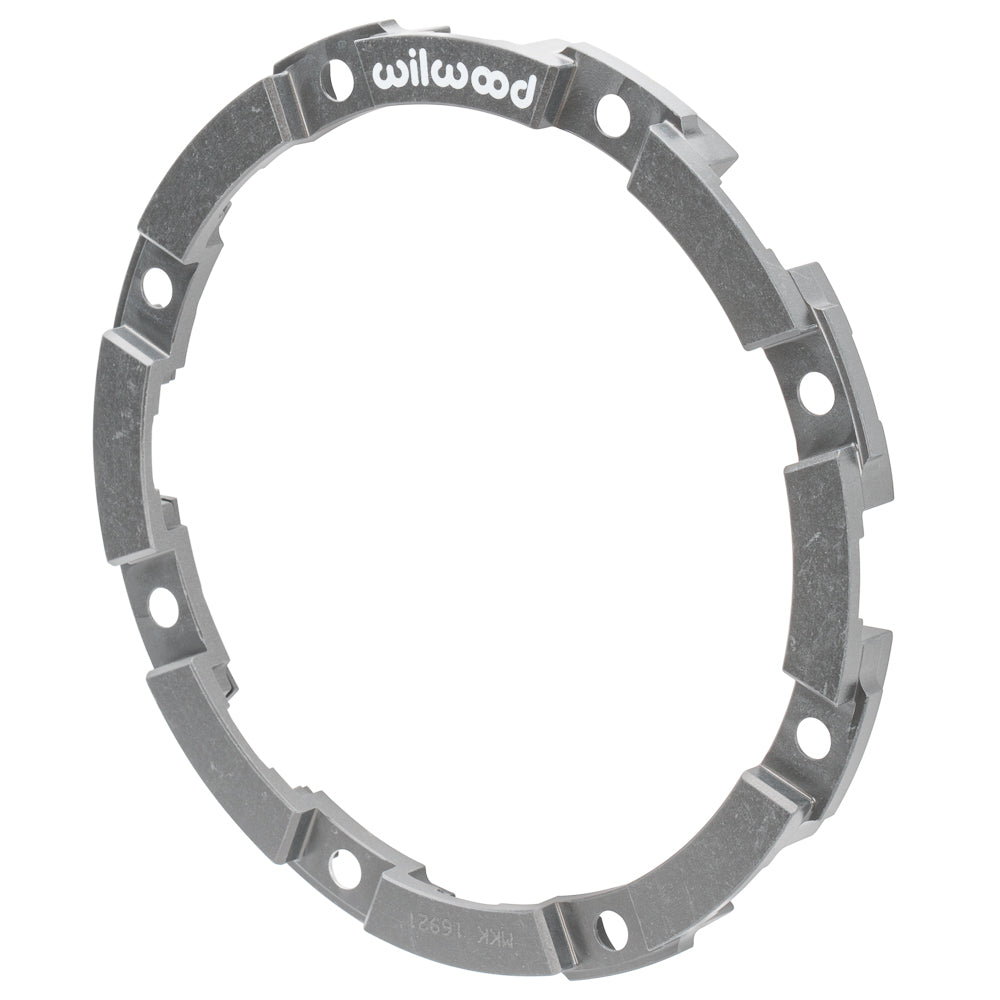

This Wilwood Dynamic Lug Mount adapter joins a Starlite 55 Wide 5 racing hub to an eight-lug rotor. It uses an 8 x 7.00-inch hub pattern, zero offset and the rotor-retention arrangement for a 7.18-inch snap ring. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. The company designs and manufactures complete disc-brake systems and parts, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Selection depends on the complete brake-system configuration.
Technical Details
- Manufacturer part number: 300-16921
- Material: Aluminum
- Finish: Type III Anodize
- Package: 1 Starlite 55 lug-drive rotor adapter
- Weight: 0.380 lb
- Hub bolt circle: 8 x 7.00 in
- Offset: zero
- Rotor interface: eight lugs, 7.18 in snap ring
- Retention kit: 300-12561
- Mounting bolt kit: 230-17419
Fitment & Compatibility
Match the Starlite 55 hub and eight-lug rotor to the zero-offset adapter. Wilwood specifies snap-ring/wear-plate kit 300-12561 and mounting bolt kit 230-17419 for this assembly.
Manufacturer Documents
For help matching the component to your assembly, contact PMB Performance with the brake-kit details and dimensions. Our team has over 20 years of experience working through parts and fitment questions.
