Product details

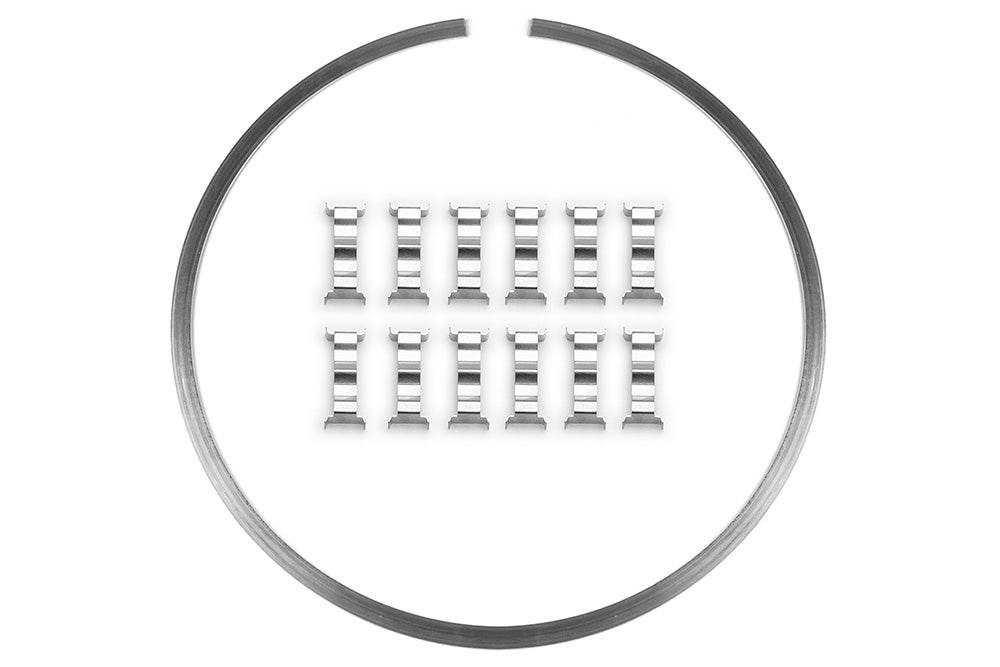

This Wilwood kit retains one twelve-lug dynamic brake rotor on its matching hat. A 7.77-inch snap ring holds the assembly, while twelve stainless steel wear plates protect the lug contact surfaces. Wilwood Engineering’s disc-brake range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems. Bill Wood founded the company in 1977, and its base is Camarillo, California. Each part is chosen to suit the operating and installation requirements of the whole brake system.
Technical Details
- Manufacturer part number: 300-14912
- Material: Stainless Steel
- Weight: 0.150 lb
- Package: 1 kit with a 7.77-inch snap ring and 12 wear plates
- Retainer diameter: 7.77 in
- Coverage: one twelve-lug dynamic rotor
Fitment & Compatibility
Use with the twelve-lug Dynamic Lug Mount system specifying the 7.77-inch snap-ring size. Check the hat groove and lug arrangement; this dimension does not identify overall rotor diameter.
Manufacturer Documents
Contact PMB Performance with the existing part identification and brake-system configuration for selection assistance. We draw on over 20 years of experience with parts and fitment.
