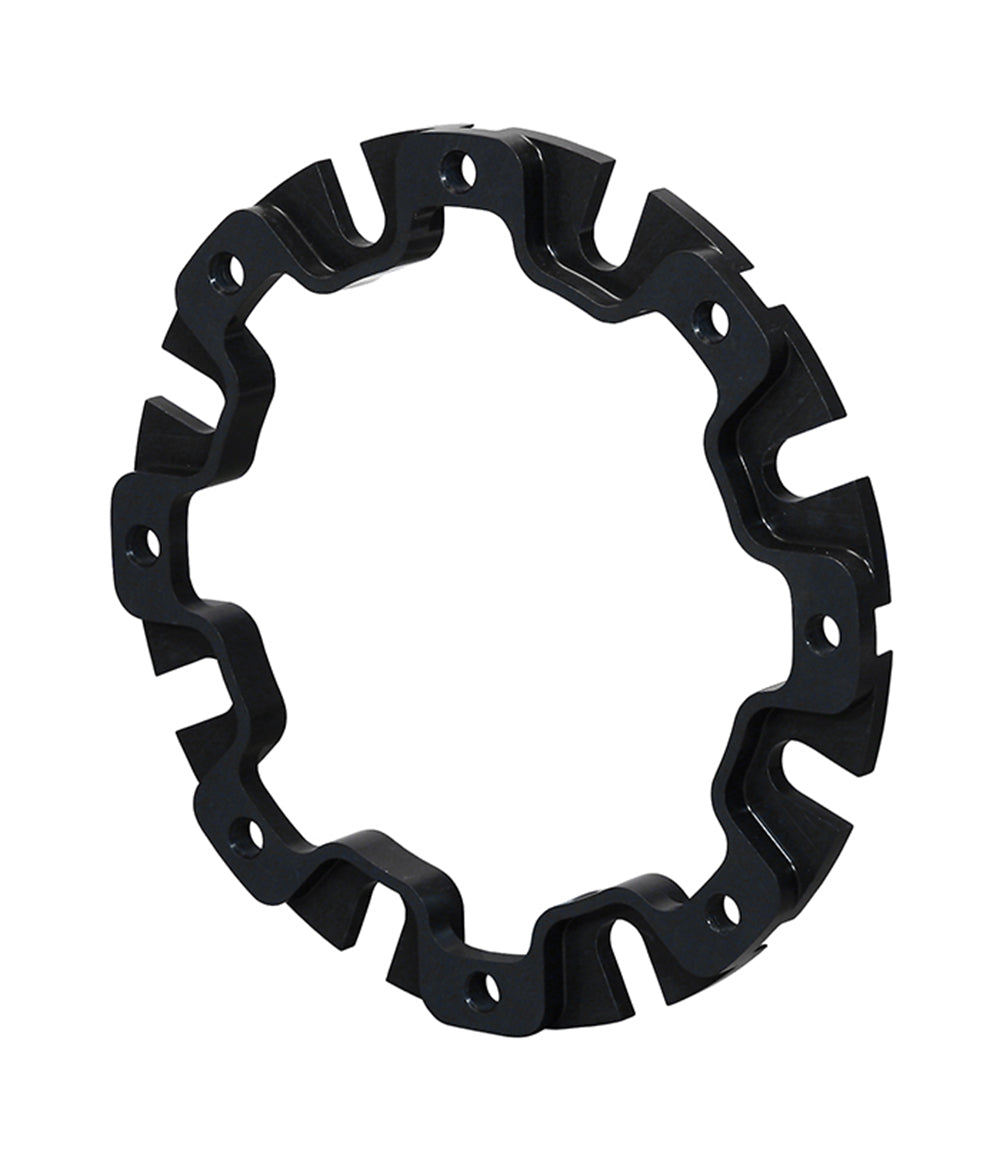

Wilwood Starlite 55 Floating Rotor Adapter, Zero Offset, 8 x 7.00

This Wilwood zero-offset adapter converts a suitable Wide 5 hub with an 8 x 7.00-inch fixed rotor mount to dynamic rotor mounting. The aluminum adapter retains the 8 x 7.00-inch bolt circle on both interfaces and has a Type III anodized finish. Founded in 1977 by Bill Wood, Wilwood Engineering designs and manufactures disc-brake systems from Camarillo, California. Its range of calipers, rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications. Individual parts must be matched to the requirements of the complete system.

Technical Details

• Manufacturer part number: 300-14294
• Material: Aluminum
• Finish: Type III Anodize
• Package: 1 zero-offset rotor adapter
• Weight: 0.500 lb
• Offset: zero
• Hub and rotor bolt circles: 8 x 7.00 in
• Dynamic rotor kit: 230-14845
• Adapter-to-hub bolt kit: 230-8390

Fitment & Compatibility

For the specified Starlite 55 or matching Wide 5 hub arrangement. Use dynamic rotor hardware 230-14845 and adapter-to-hub hardware 230-8390, then verify rotor alignment and brake-package clearance.

Manufacturer Documents

• Wilwood DS1195 technical document
• Wilwood hardware specifications
