Product details
These Wilwood rings establish the centering fit between a 2.534-inch hub register and the brake rotor or hat. The pair is made from plain aluminum for assemblies with a 3.060-inch counterbored center opening. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. The company designs and manufactures complete disc-brake systems and parts, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Selection depends on the complete brake-system configuration.
Technical Details
- Manufacturer part number: 300-13696-2
- Material: Aluminum
- Finish: Plain
- Package: 2 register adapters
- Weight: 0.100 lb
- Internal diameter: 2.534 in
- Outer diameter: 3.060 in
Fitment & Compatibility
Confirm the actual hub pilot requires a 2.534-inch adapter and verify the kit component specification. Check that each ring seats inside the counterbore without altering the rotor's mounting-face contact.
Manufacturer Documents

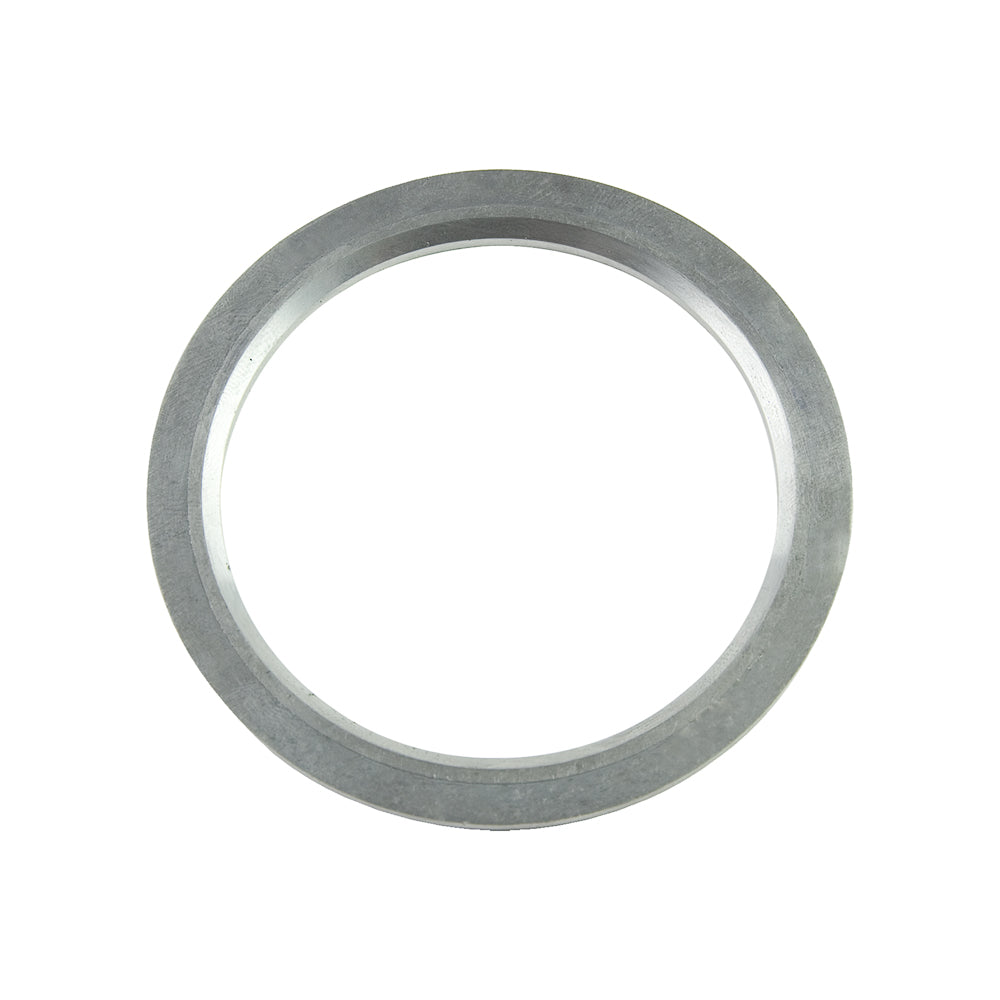

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
For help matching the component to your assembly, contact PMB Performance with the brake-kit details and dimensions. Our team has over 20 years of experience working through parts and fitment questions.
