Product details
These Wilwood adapters connect Sprint/Midget front hubs to rotors using an 8 x 7.00-inch mounting pattern. Each hard-anodized aluminum adapter combines a 3 x 5.00-inch hub pattern with provisions for fixed or dynamic rotor attachment. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components include calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected for the complete brake system.
Technical Details
- Manufacturer part number: 300-13474-2
- Material: Aluminum
- Finish: Type III Anodize
- Package: 2 front rotor adapters
- Weight: 1.000 lb
- Position: front Sprint/Midget hub applications
- Hub bolt circle: 3 x 5.00 in
- Rotor bolt circle: 8 x 7.00 in
Fitment & Compatibility
Match the front hub's 3 x 5.00-inch bolt circle, the rotor's 8 x 7.00-inch mount and the required adapter offset. Use the fastener arrangement specified for the chosen fixed or floating system.
Manufacturer Documents

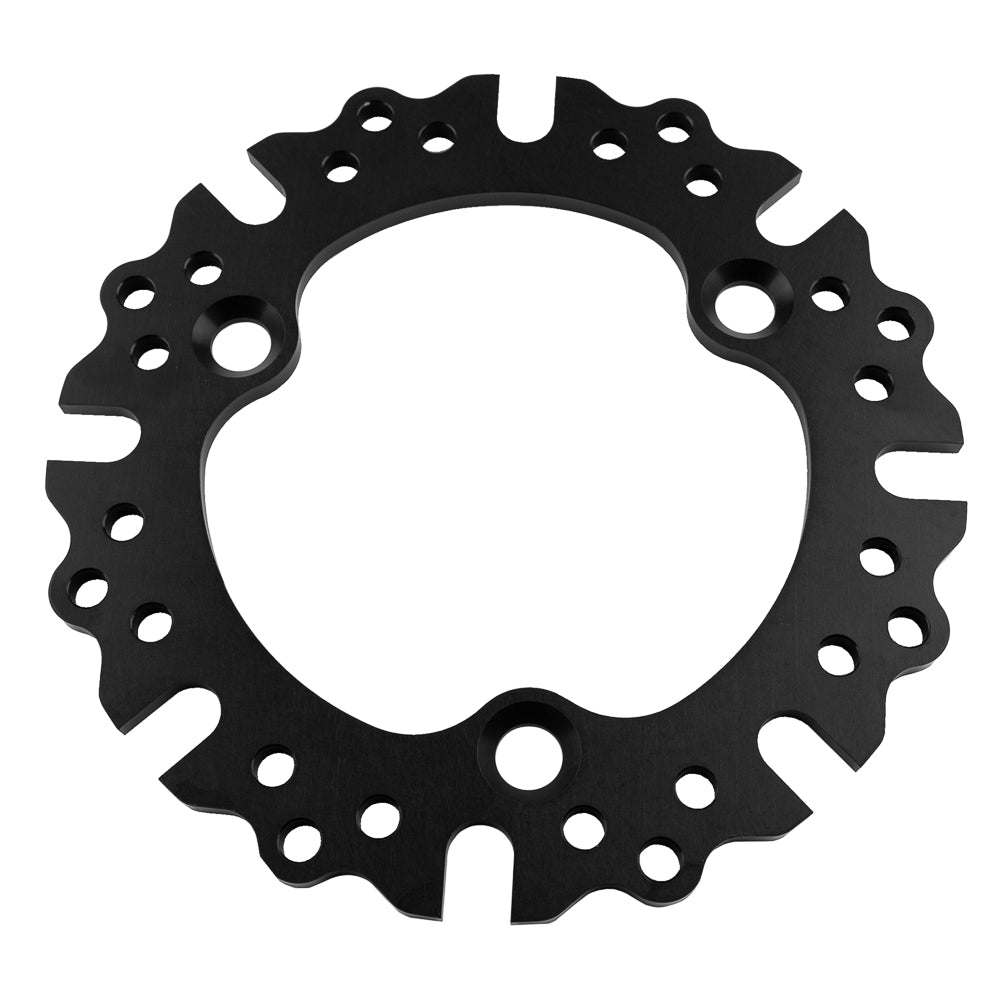

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance brings over 20 years of experience with brake components and fitment. Send us the installed kit number and relevant measurements if you need help confirming this part.
