Product details

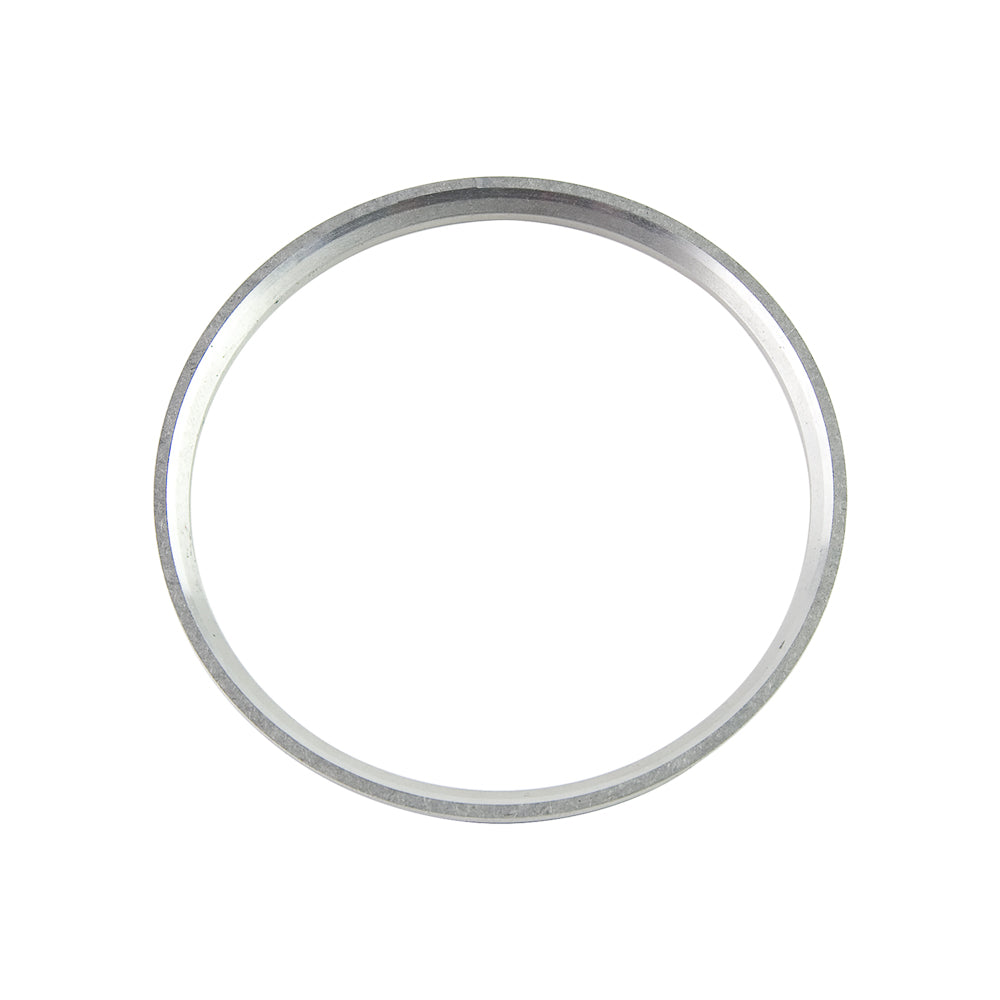

These Wilwood aluminum rings center a brake rotor or hat on a 2.877-inch hub or axle register. The pair fits the matching 3.060-inch counterbore, with the full ring profile determining how it seats. The manufacturer, Wilwood Engineering, was established in 1977 by Bill Wood and is based in Camarillo, California. It produces disc-brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Motorsport, street-performance and specialized applications each require a suitable combination of those components.
Technical Details
- Manufacturer part number: 300-13328-2
- Material: Aluminum
- Finish: Plain
- Package: 2 register adapters
- Weight: 0.050 lb
- Inside diameter: 2.877 in
- Outside diameter: 3.060 in
Fitment & Compatibility
Check that the installed hub or axle requires the 2.877-inch bore rather than a nearby nominal size. The receiving rotor or hat must provide the matching counterbore and full mounting-face contact.
Manufacturer Documents
The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
With over 20 years of experience, PMB Performance can help work through the dimensions and component requirements. Provide the installed kit information when requesting a fitment check.
