Product details
For a brake assembly specified around a 2.287-inch register, these Wilwood rings provide the hub-to-rotor locating interface. Their plain aluminum construction and 3.060-inch outside diameter suit the corresponding counterbored rotor or hat. Wilwood Engineering’s disc-brake range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems. Bill Wood founded the company in 1977, and its base is Camarillo, California. Each part is chosen to suit the operating and installation requirements of the whole brake system.
Technical Details
- Manufacturer part number: 300-12846-2
- Material: Aluminum
- Finish: Plain
- Package: 2 register rings
- Weight: 0.100 lb
- Internal diameter: 2.287 in
- Outside diameter: 3.060 in
Fitment & Compatibility
Check the required 2.287-inch internal size against the actual hub register and brake-kit instructions. Verify the ring shoulder and counterbore provide full rotor-to-flange contact.
Manufacturer Documents

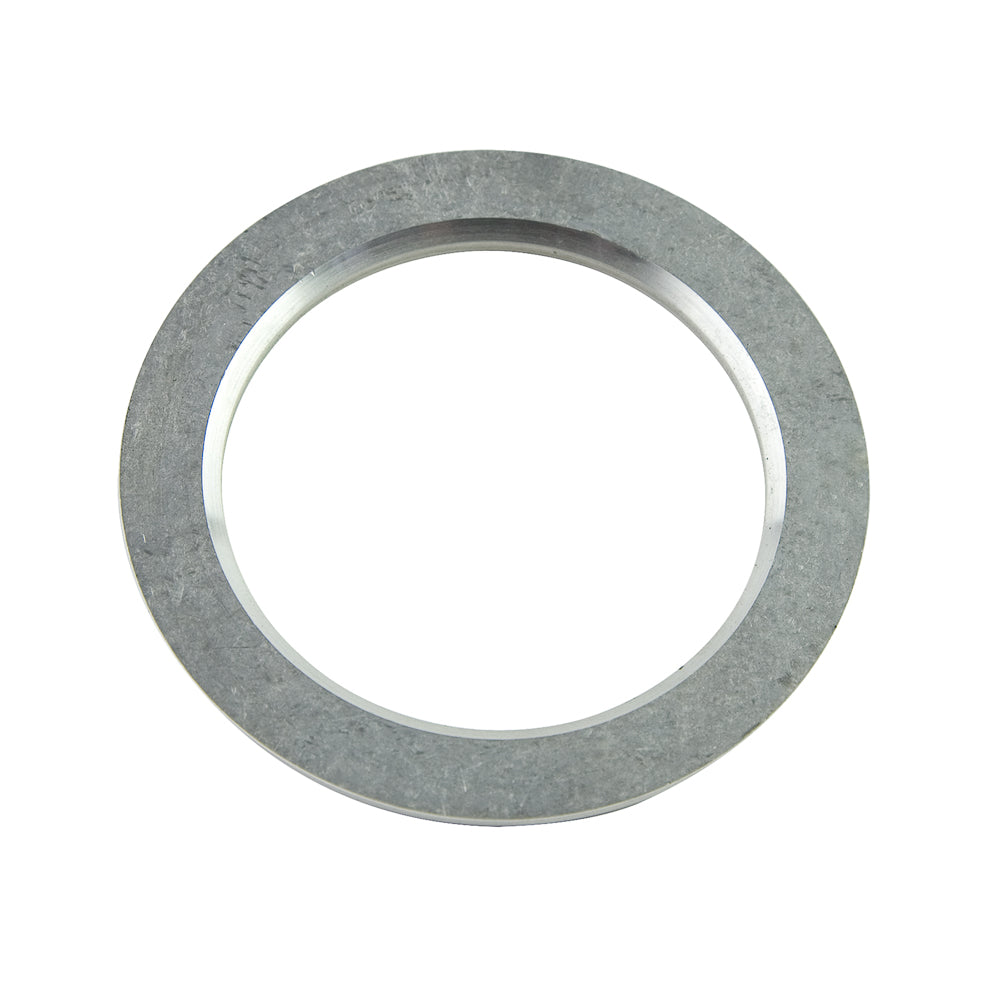

The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
Contact PMB Performance with the existing part identification and brake-system configuration for selection assistance. We draw on over 20 years of experience with parts and fitment.
