Product details

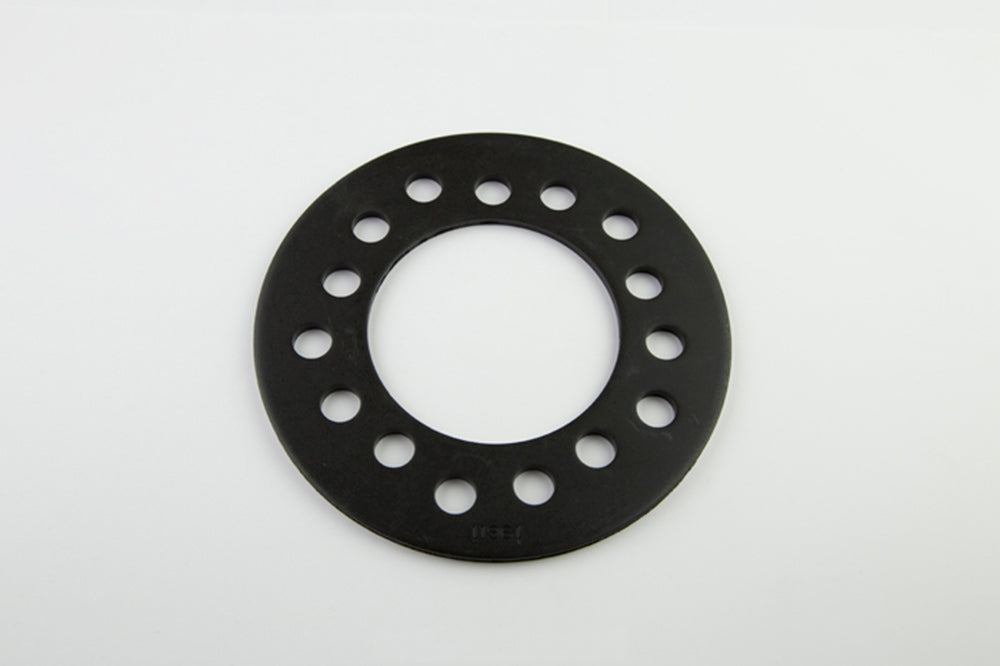

This Wilwood steel spacer adds 5 mm at the wheel mounting face while protecting the hub surface. It accommodates 5 x 4.50, 5 x 4.75 and 5 x 5.00-inch bolt circles, so both the wheel pattern and available stud length must suit the assembly. Wilwood Engineering’s disc-brake range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems. Bill Wood founded the company in 1977, and its base is Camarillo, California. Each part is chosen to suit the operating and installation requirements of the whole brake system.
Technical Details
- Manufacturer part number: 300-11961
- Material: Steel
- Finish: Plated
- Package: 1 wheel spacer / hub protector
- Weight: 1.180 lb
- Thickness: 5 mm (approximately 0.197 in)
- Patterns: 5 x 4.50 / 5 x 4.75 / 5 x 5.00 in
Fitment & Compatibility
For matching five-lug wheel and hub patterns in the listed sizes. Confirm center clearance, wheel offset, body clearance and sufficient fastener engagement with the 5 mm spacer fitted.
Manufacturer Documents
Contact PMB Performance with the existing part identification and brake-system configuration for selection assistance. We draw on over 20 years of experience with parts and fitment.
