Product details

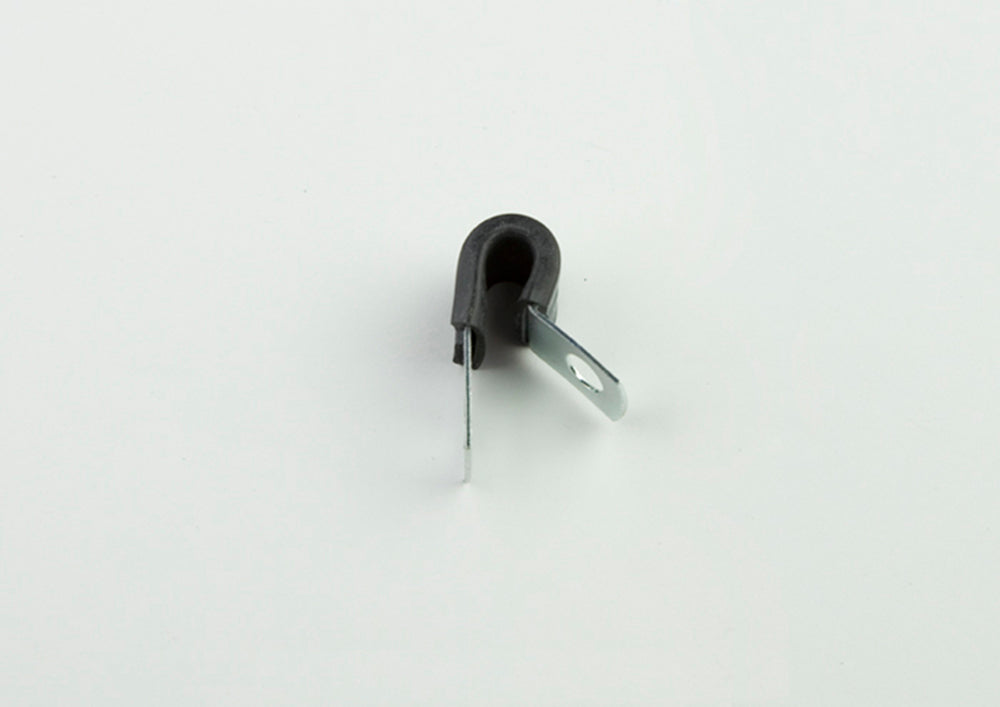

This Wilwood clamp supports a brake flexline within a 5/16-inch cushioned loop. Its zinc-plated steel construction incorporates a neoprene cushion and a 0.28-inch mounting hole for securing the line along its route. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Founded by Bill Wood in 1977, it serves motorsport, street-performance and specialized applications with calipers, rotors, master cylinders, valves, fittings and brake lines that must be selected as part of a matched braking system.
Technical Details
- Manufacturer part number: 300-11636
- Material: Steel with neoprene cushion
- Weight: 0.020 lb
- Package: 1 cushioned flexline clamp
- Loop diameter: 0.312 in (5/16 in nominal)
- Mounting hole: 0.28 in
- Cushion: neoprene
- Finish: zinc plating
Fitment & Compatibility
Check the outside diameter of the line being retained and the available mounting fastener. Route the hose with adequate movement and clearance throughout suspension and steering travel.
