Wilwood Rear Dynalite Bracket Spacer Kit, 0.482 Inch, 2.50/2.81 Offset

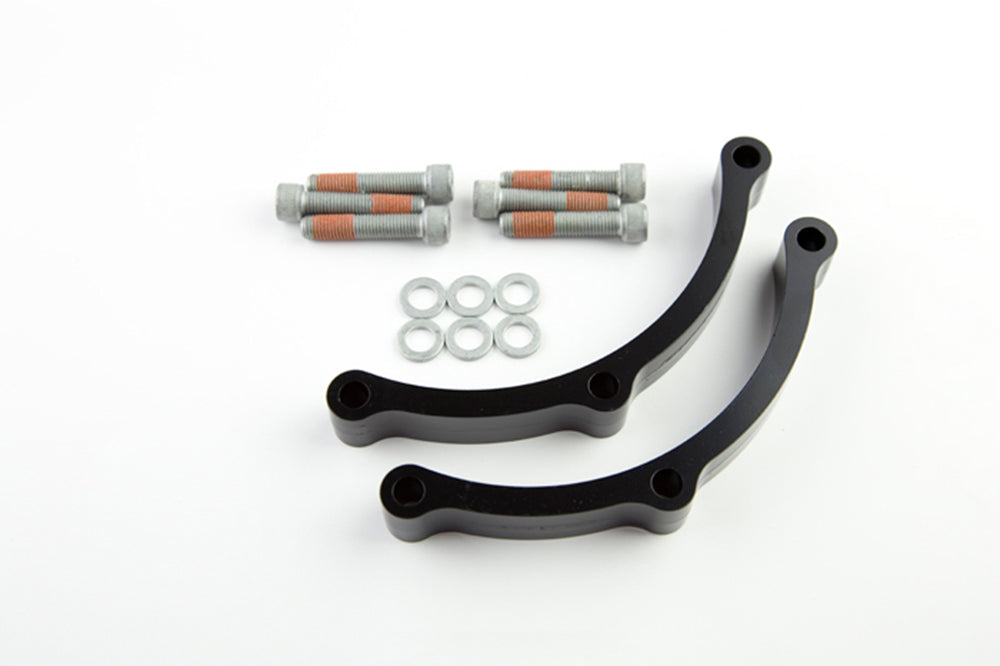

The 0.482-inch spacers in this Wilwood kit position the caliper bracket for a rear internal drum parking-brake assembly. They suit lug-mount Forged Dynalite packages built around a 2.50 or 2.81-inch axle offset and are supplied with bolts and washers. Founded in 1977 by Bill Wood, Wilwood Engineering designs and manufactures disc-brake systems from Camarillo, California. Its range of calipers, rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications. Individual parts must be matched to the requirements of the complete system.

Technical Details

• Manufacturer part number: 300-11542
• Material: Aluminum
• Application details: For use with Forged Dynalite kits for 2.50/2.81 offset.
• Package: 1 kit with spacers, bolts and washers
• Weight: 0.510 lb
• Spacer length: 0.482 in
• Axle offset: 2.50 / 2.81 in

Fitment & Compatibility

For the specified Forged Dynalite rear disc/drum kit only. Verify the lug-mount bracket and 2.50 or 2.81-inch axle offset; spacer length alone does not identify the correct mounting kit.

Manufacturer Documents

• Wilwood hardware specifications

Have a question about the hardware already on your vehicle? PMB Performance can help compare the part and mounting requirements, backed by over 20 years of brake and fitment experience.
