Product details

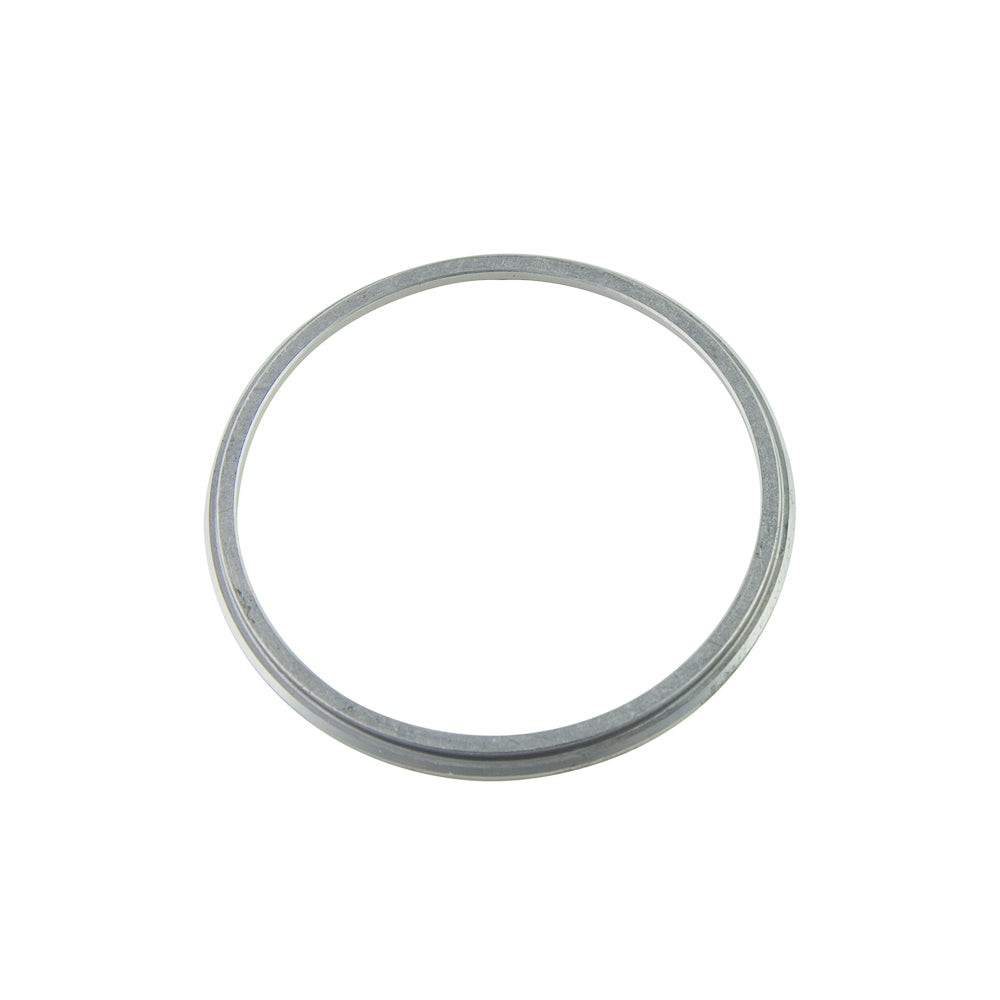

This Wilwood ring pair centers a counterbored rear brake rotor or hat on a 2.784-inch axle register. It serves the optional register-adapter position in the specified rear disc/drum brake packages, with ring size selected for the installed axle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components include calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected for the complete brake system.
Technical Details
- Manufacturer part number: 300-11532-2
- Material: Aluminum
- Finish: Plain
- Package: 2 rear axle register rings
- Weight: 0.050 lb
- Inside diameter: 2.784 in
- Outside diameter: 3.060 in
Fitment & Compatibility
Use the ring specified by the particular rear brake kit and measure the axle register rather than selecting by vehicle name alone. A 3.060-inch counterbored rotor or hat opening is required.
Manufacturer Documents
The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance brings over 20 years of experience with brake components and fitment. Send us the installed kit number and relevant measurements if you need help confirming this part.
