Wilwood 0.090-Inch Wheel Spacer and Hub Shield, 5 x 4.50/4.75/5.00

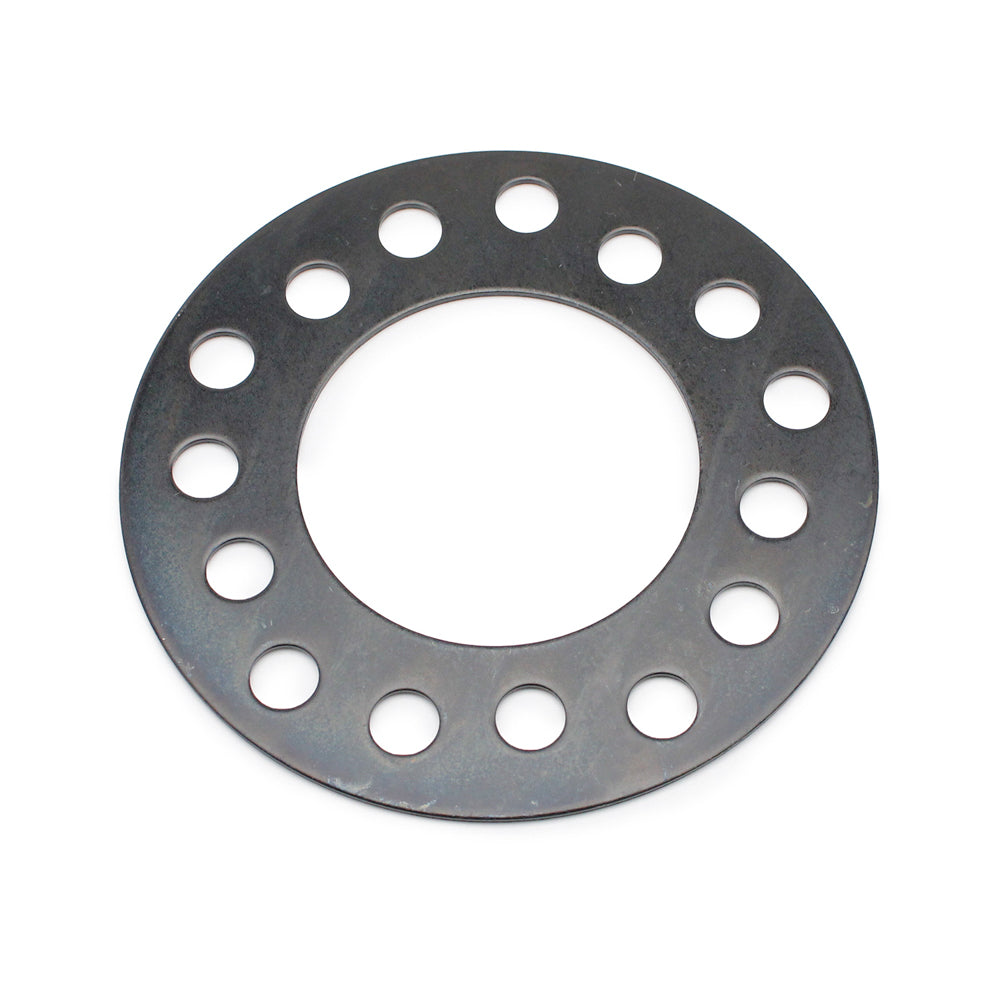

This 0.090-inch Wilwood steel spacer protects the hub face at the wheel mounting surface. It accepts three five-lug bolt circles, with wheel seating and remaining stud engagement checked for the installed spacer thickness. Founded in 1977 by Bill Wood, Wilwood Engineering designs and manufactures disc-brake systems from Camarillo, California. Its range of calipers, rotors, master cylinders, valves, fittings and brake lines serves motorsport, street-performance and specialized applications. Individual parts must be matched to the requirements of the complete system.

Technical Details

• Manufacturer part number: 300-10716
• Material: Steel
• Finish: Plated
• Package: 1 wheel spacer / hub protector
• Weight: 0.440 lb
• Thickness: 0.090 in
• Wheel patterns: 5 x 4.50 / 5 x 4.75 / 5 x 5.00 in

Fitment & Compatibility

Match the wheel and hub to a 5 x 4.50, 5 x 4.75 or 5 x 5.00-inch bolt circle. Check center clearance, wheel seating and remaining stud engagement after adding the 0.090-inch spacer.

Manufacturer Documents

• Wilwood hardware specifications

Have a question about the hardware already on your vehicle? PMB Performance can help compare the part and mounting requirements, backed by over 20 years of brake and fitment experience.
