Product details

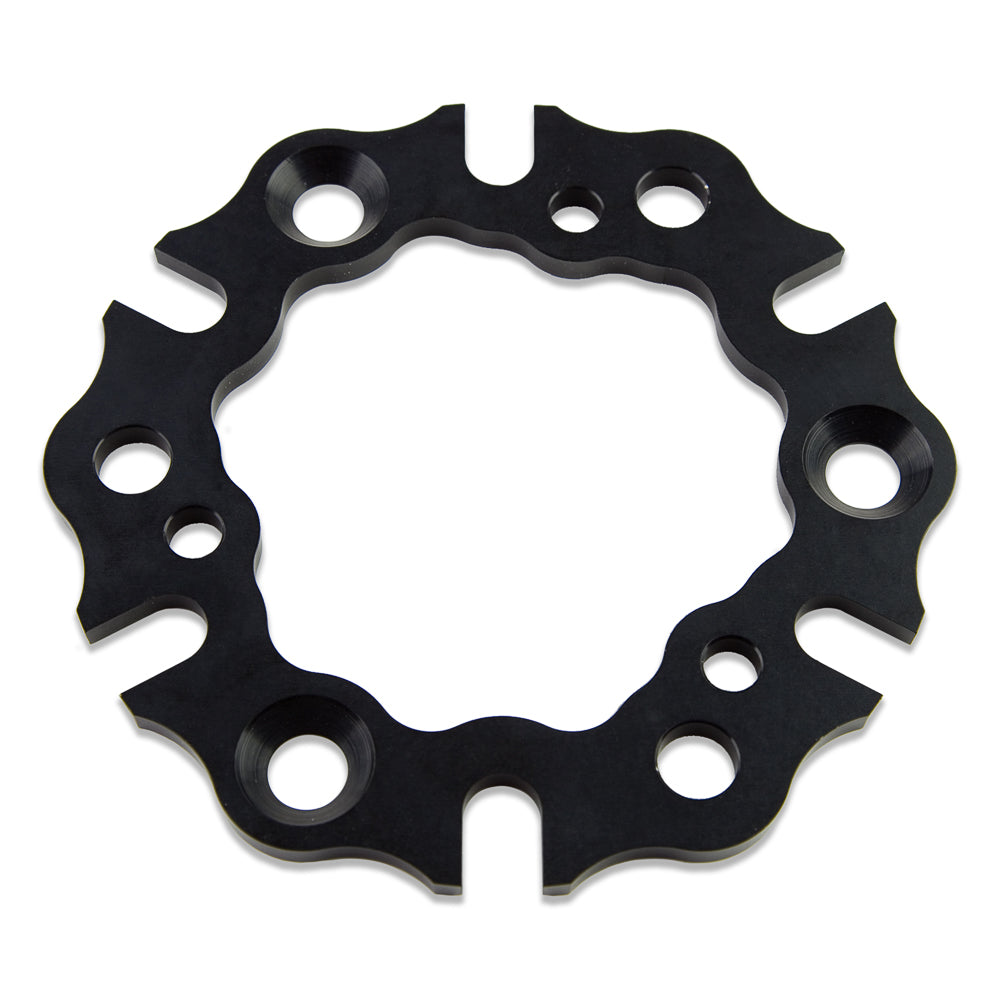

These Wilwood adapters connect floating brake rotors to Asphalt Midget front hubs. The two hard-anodized aluminum adapters use a 6 x 5.50-inch rotor pattern and the hub attachment specified for the complete brake kit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components include calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected for the complete brake system.
Technical Details
- Manufacturer part number: 300-10530-2
- Material: Aluminum
- Finish: Type III Anodize
- Package: 2 front rotor adapters
- Weight: 0.650 lb
- Rotor bolt circle: 6 x 5.50 in
- Hub attachment: three fasteners on a 5.00 in circle in the documented installation
- Hub configurations: specified six-pin or Wide 5 assemblies; hardware differs by hub
Fitment & Compatibility
For the Asphalt Midget front assembly using a six-pin hub or the specified Wide 5 hub arrangement. Match the 5.00-inch hub circle and three attachment fasteners to the kit drawing; the Wide 5 arrangement also requires its specified spacers.
Manufacturer Documents
The photograph represents the product family. Match the ordered configuration using the part number and specifications above.
PMB Performance brings over 20 years of experience with brake components and fitment. Send us the installed kit number and relevant measurements if you need help confirming this part.
